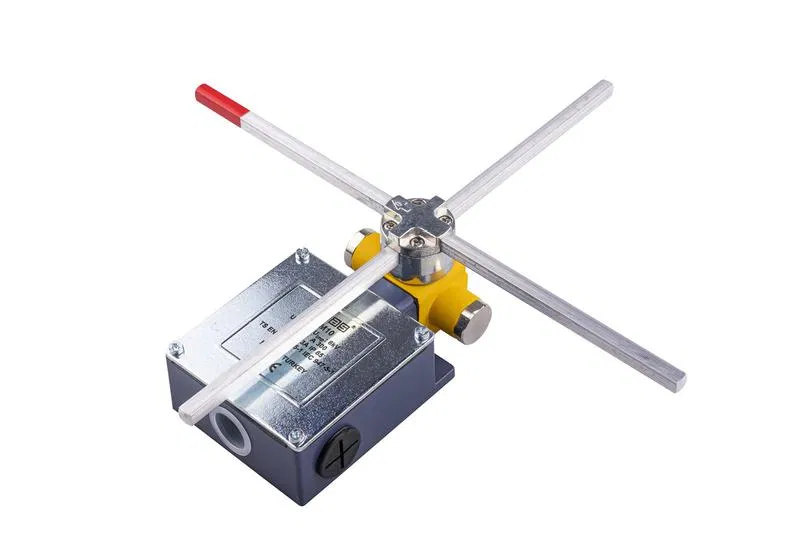

Emergency cross switch (rotation angle 2x180deg.) EMAS CSM10

CSM10 Cross limit switch with 200mm actuator, rotation angle, 360° (unrestricted), metal housing (400V, 25A), IP65 TECHNICAL SPECIFICATIONS Product Cross limit switch Rotation angle 360° Property Lever 200 mm Rated current (i.e.) 3 A (240 V AC) Utilization category AC15 Mechanical life (minimum number) 1000000 Electrical life (minimum number) 100000 Insulation voltage (Ui) 500 V Impulse withstand voltage (Uimp) 6 kV Dielectric strength (contact to body) 1,890 V AC Dielectric strength (contact-to-contact) 1,890 V AC Insulation resistance 10 MΩ MIN. (500 V DC) Operating Temperature -25 / + 80 °C Pollution degree 3 Protection class IP65 Contact material AgNi Cable connection cross-section 1-2.5 mm2 Clamping force 1.5 Nm Short-circuit breaking capacity (Ics) 1kA Series CSM Step Infinite CSM series cross limit switches • Metal housing and cover • Cable entry PG13.5 • External mounting holes • Protection degree: IP65 Application area • All industrial machines: packaging equipment, material handling equipment, conveyors, machine tools, food and beverage production equipment, service industry, etc.
