EKF

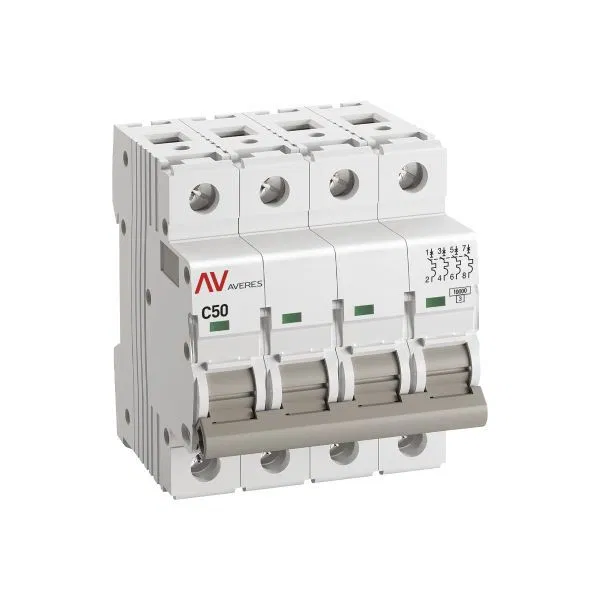

Circuit breaker AV-10 4P 50A (C) 10kA EKF AVERES mcb10-4-50C-av
SKU: mcb10-4-50C-av
ETIM: EC000042
291,331 ₽
Get back 2,913 ₽ in points
Order multiple: 30 шт
Analogues by specifications
No description available
Additional equipment possible
Yes
Mounting installation depth
74 мм
For flush mounting
Yes
Overvoltage category
3
Current limiting class
3
Number of protected poles
4
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
10 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
10 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V
10 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V
10 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated impulse voltage
6 кВ
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
50 А
Total number of poles
4
Ambient operating temperature to
60 град.C
Ambient operating temperature from
-40...60 град.C
Current type
AC (alternating)
With switched neutral conductor
Yes
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
1...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1...25 кв.мм
Pollution degree (number)
2
IP protection rating
IP20
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency
50 Гц
Frequency at
60 Гц
Frequency from
50...60 Гц
Width in modular units
4
