EKF

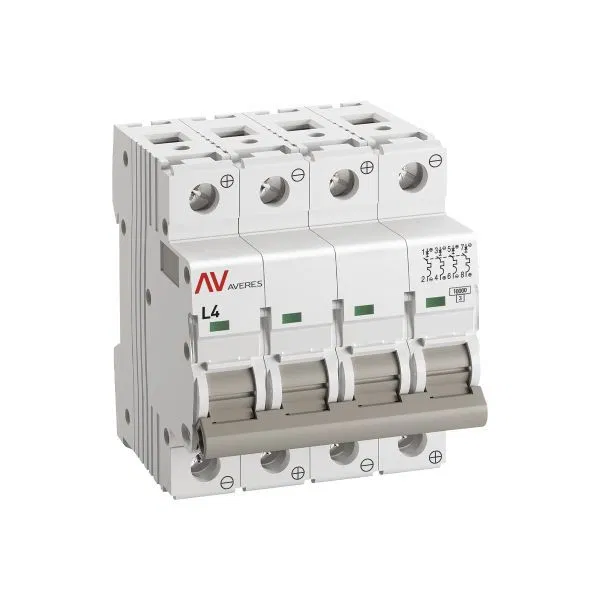

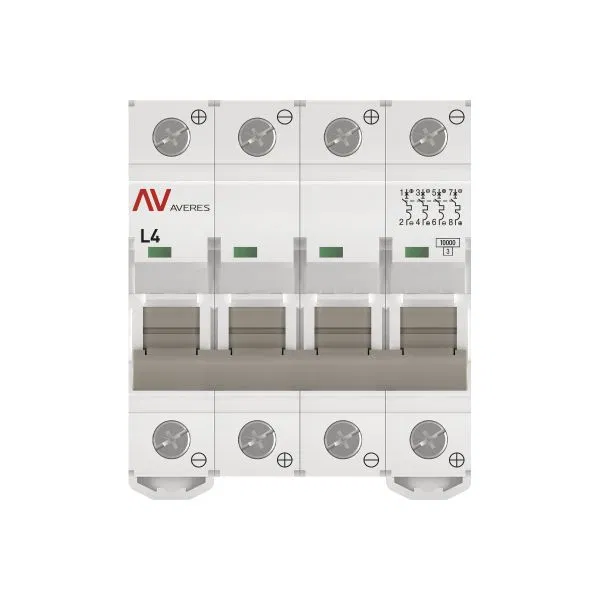

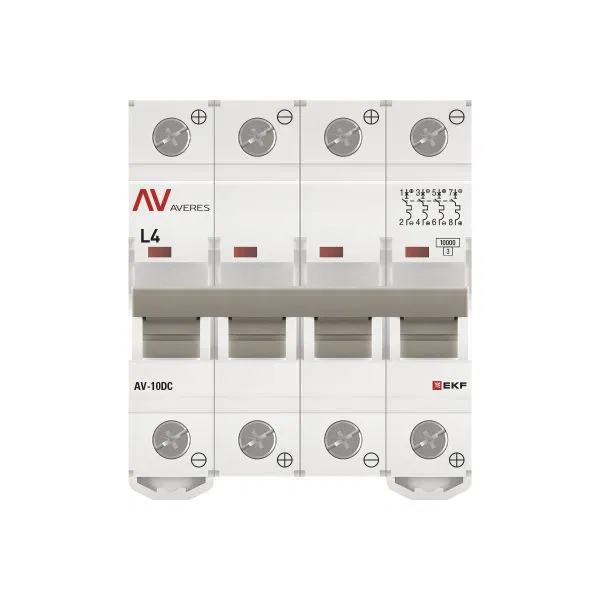

Circuit breaker AV-10 DC 4P 4A (L) 10kA EKF AVERES mcb10-DC-4-04L-av

SKU: mcb10-DC-4-04L-av ETIM: EC000042

12,341 ₽

Get back 123 ₽ in points

Description Specifications Reviews

Additional equipment possible Yes

Mounting installation depth 74 мм

For flush mounting Yes

Overvoltage category 3

Current limiting class 3

Number of protected poles 4

Rated breaking capacity in accordance with EN 60898 10 кА

Rated impulse voltage 6 кВ

Rated voltage 1 000 В

Rated insulation voltage Ui 1 000 В

Rated current 4 А

Total number of poles 4

Ambient operating temperature to 60 град.C

Ambient operating temperature from -40...60 град.C

Current type DC (direct)

With switched neutral conductor No

Flexible stranded conductor cross-section up to 16 кв.мм

Stranded flexible conductor cross-section from 1...16 кв.мм

Solid conductor cross-section to 25 кв.мм

Solid conductor cross-section from 1...25 кв.мм

Pollution degree (number) 2

IP protection rating IP20

Tripping characteristic L

Width in modular units 4
