EKF

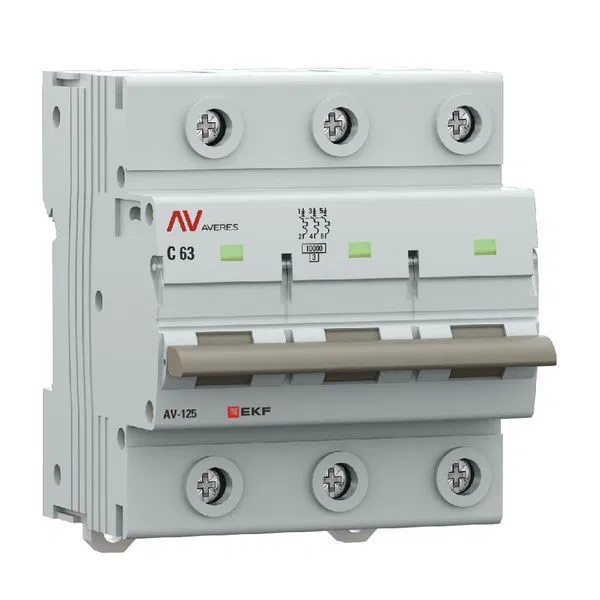

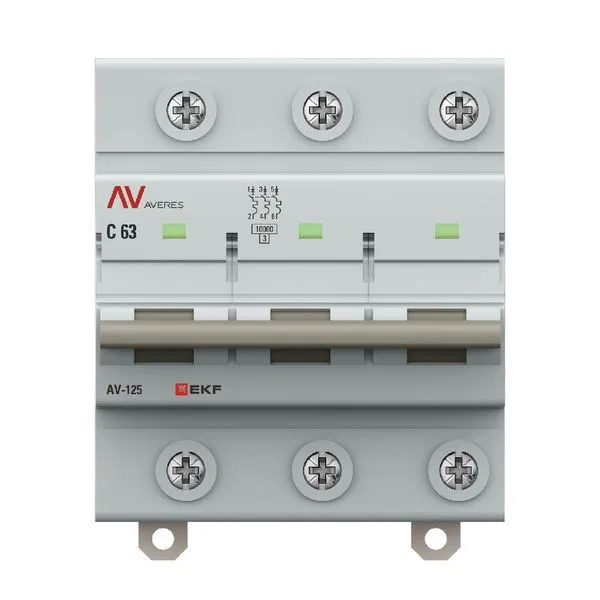

Circuit breaker AV-125 3P 63A (D) 10kA EKF AVERES mcb125-3-63D-av
SKU: mcb125-3-63D-av
ETIM: EC000042
234,440 ₽
Get back 2,344 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 40 шт
Analogues by specifications
No description available
Additional equipment possible
Yes
Mounting installation depth
78 мм
For flush mounting
Yes
Overvoltage category
3
Current limiting class
3
Number of protected poles
3
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V
10 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V
20 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated impulse voltage
4 кВ
Rated voltage
400 В
Rated insulation voltage Ui
660 В
Rated current
63 А
Total number of poles
3
Ambient operating temperature to
50 град.C
Ambient operating temperature from
-25...50 град.C
Current type
AC (alternating)
With switched neutral conductor
No
Flexible stranded conductor cross-section up to
35 кв.мм
Stranded flexible conductor cross-section from
25...35 кв.мм
Solid conductor cross-section to
50 кв.мм
Solid conductor cross-section from
25...50 кв.мм
Pollution degree (number)
2
IP protection rating
IP20
Tripping characteristic
D
Frequency at
60 Гц
Frequency from
50...60 Гц
Width in modular units
4.5
