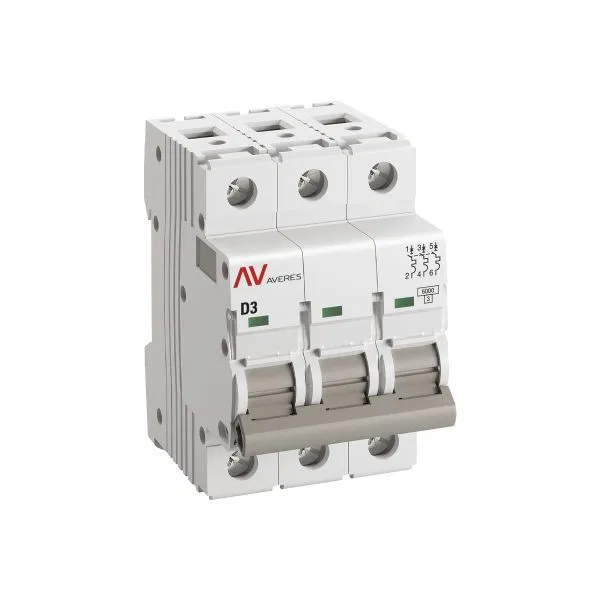

Circuit breaker AV-6 3P 3A (D) 6kA EKF AVERES mcb6-3-03D-av
SKU: mcb6-3-03D-av
ETIM: EC000042
3758 ₽
Price list (incl. VAT):
7047 ₽
Available August 4
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Manufacturer warehouse
Available
|
55 | шт | August 4 | August 4 |
Select a warehouse to order
AV-6 EKF AVERES series miniature circuit breakers are designed for the rapid control of electrical circuit sections, as well as for protection against overload and short-circuit currents in administrative, industrial, and residential buildings. The rated breaking capacity (Icn) is 6 kA. A full set of accessories for expanding functions is available. 10-year warranty obligations.
| Additional equipment possible | Yes |
| Mounting installation depth | 74 мм |
| For flush mounting | Yes |
| Overvoltage category | 3 |
| Current limiting class | 3 |
| Number of protected poles | 3 |
| Rated short-circuit breaking capacity Icu IEC 60898 at 230 V | 6 кА |
| Rated short-circuit breaking capacity Icu IEC 60898 at 400 V | 6 кА |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V | 6 кА |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 10 кА |
| Rated breaking capacity in accordance with EN 60898 | 6 кА |
| Rated impulse voltage | 6 кВ |
| Rated voltage | 400 В |
| Rated insulation voltage Ui | 500 В |
| Rated current | 3 А |
| Total number of poles | 3 |
| Ambient operating temperature to | 60 град.C |
| Ambient operating temperature from | -40...60 град.C |
| Current type | AC (alternating) |
| With switched neutral conductor | No |
| Flexible stranded conductor cross-section up to | 16 кв.мм |
| Stranded flexible conductor cross-section from | 1...16 кв.мм |
| Solid conductor cross-section to | 25 кв.мм |
| Solid conductor cross-section from | 1...25 кв.мм |
| Pollution degree (number) | 2 |
| IP protection rating | IP20 |
| Tripping characteristic | It seems your message was cut short. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. |
| Frequency | 50 Гц |
| Frequency at | 60 Гц |
| Frequency from | 50...60 Гц |
| Width in modular units | 3 |
