2,313 ₽
Get back 23 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

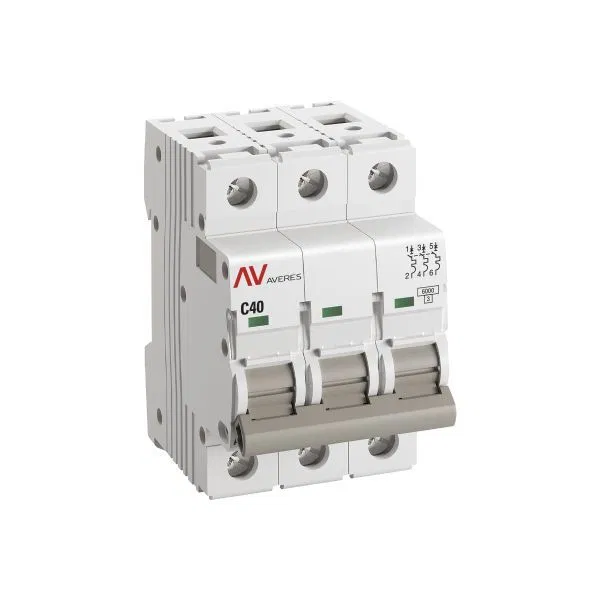

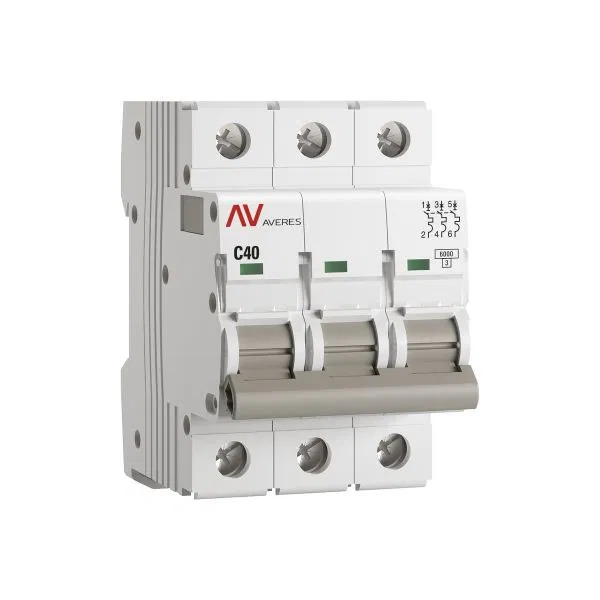

AV-6 EKF AVERES series miniature circuit breakers are designed for the rapid control of electrical circuit sections, as well as for protection against overload and short-circuit currents in administrative, industrial, and residential buildings. The rated breaking capacity (Icn) is 6 kA. A full set of accessories for expanding functions is available. 10-year warranty obligations.
Additional equipment possible
Yes
Mounting installation depth
74 мм
For flush mounting
Yes
Overvoltage category
3
Current limiting class
3
Number of protected poles
3
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
6 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
6 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V
6 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V
10 кА
Rated breaking capacity in accordance with EN 60898
6 кА
Rated impulse voltage
6 кВ
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
40 А
Total number of poles
3
Ambient operating temperature to
60 град.C
Ambient operating temperature from
-40...60 град.C
Current type
AC (alternating)
With switched neutral conductor
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
1...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1...25 кв.мм
Pollution degree (number)
2
IP protection rating
IP20
Tripping characteristic
C
Frequency
50 Гц
Frequency at
60 Гц
Frequency from
50...60 Гц
Width in modular units
3
