Контактор (группа IEK)

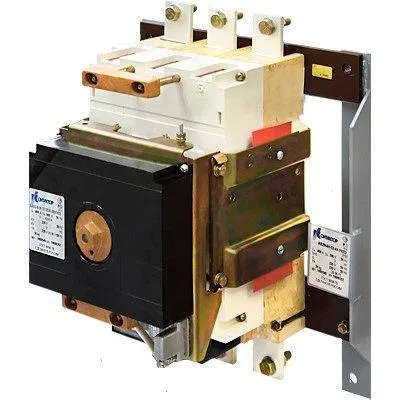

Automatic circuit breaker AV2M4S-55-41-250-MP4-UHL3-PE220VAC-3p4z 250A; max current trip unit MRT4-MP; electromagnetic drive 220VAC; free contacts 3p4z Contactor 1013312
SKU: 1013312
ETIM: EC000228
536,511 ₽
Get back 5,365 ₽ in points
Analogues by specifications
No description available
Main circuit connection type
Front connection
Built-in ground fault protection
No
Built-in motor drive
Yes
Depth
297.0 мм
Short-time delayed short-circuit release range
90…3300 А
Overload protection device setting range to
440 А
Setting range of overload protection device from
75…275 А
Instantaneous short-circuit release setting range to
4000 А
Instantaneous short-circuit release setting range from
1000 А
Design
Stationary
Climatic version
UKhL3
Number of auxiliary NO contacts
4
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
3
Number of poles
3
Design
Built-in device for built-in appliances
Motor drive optional
Yes
Electronic release available
Yes
Rated impulse withstand voltage
6
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
23 кА
Rated voltage
690 В
Rated voltage from
0...690 В
Rated current
250 А
Rated continuous current Iu
250 А
Suitable for DIN-rail mounting
No
Power loss
348 Вт
With minimum voltage protection
Yes
Tripping system
Electronic
IP protection rating
IP00
Product/component type
Moulded case circuit breaker
Main electrical circuit connection type
Bolted connection
Control element type
Other
Mains supply frequency
50/60 Гц
Width
405.0 мм
