EKF

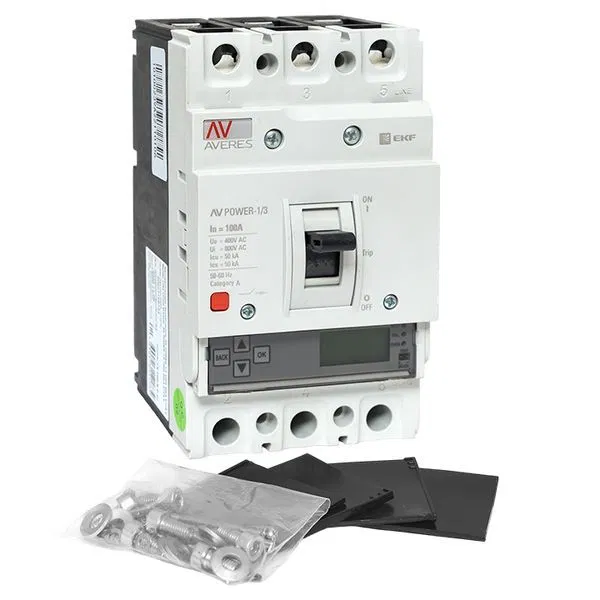

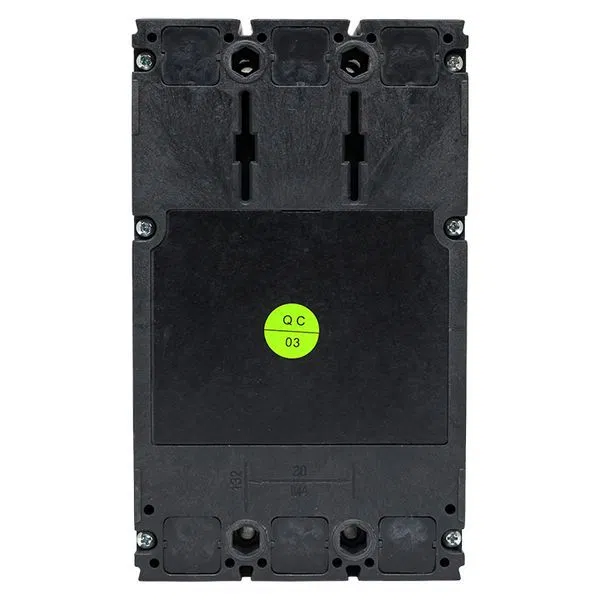

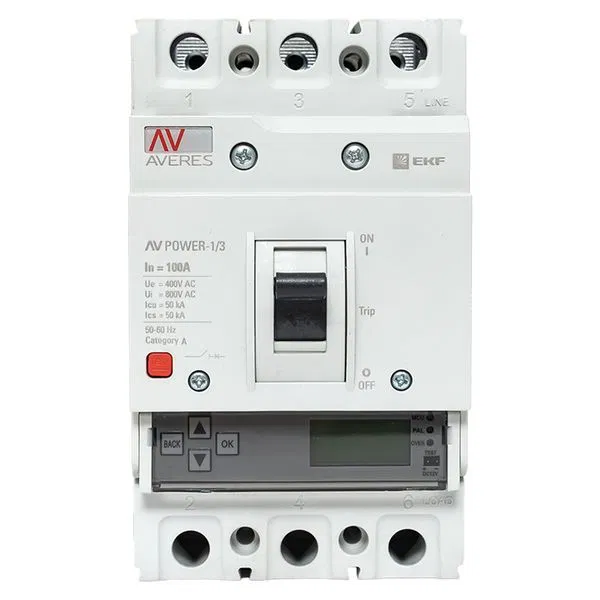

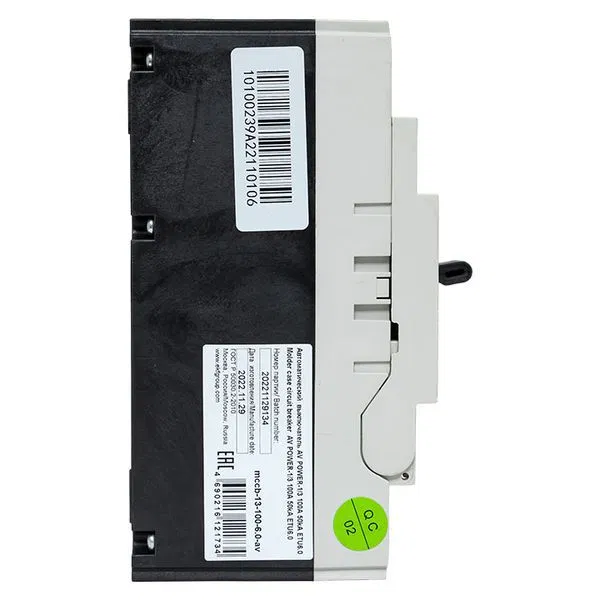

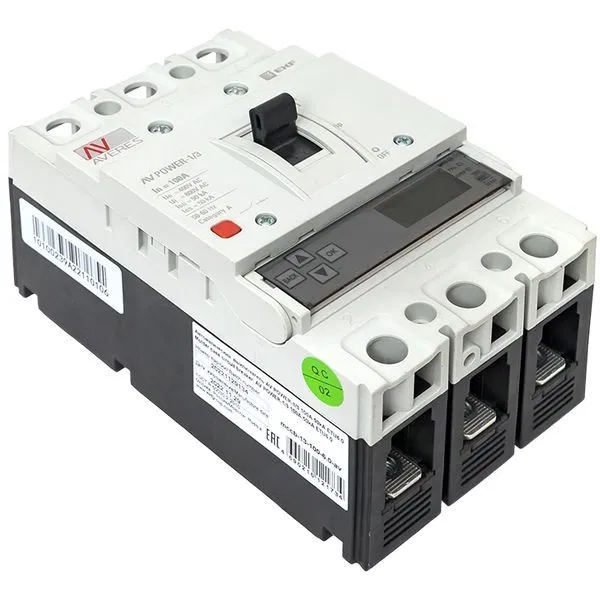

Molded case circuit breaker AV-POWER-1/3 100A 50kA ETU6.0 EKF mccb-13-100-6.0-av
SKU: mccb-13-100-6.0-av
ETIM: EC000228
19,761 ₽
Get back 197 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
These are standard devices with the possibility of selecting and replacing trip units, including both thermomagnetic and electronic trip units, as well as trip units with earth leakage protection. The unified size of the trip unit module allows any trip unit to be installed on the base to achieve the required type of protection.
Main circuit connection type
Front side
Built-in ground fault protection
Yes
Built-in motor drive
No
Short-time delayed short-circuit release range
80...1000 А
Overload protection device setting range to
100 А
Setting range of overload protection device from
40...100 А
Instantaneous short-circuit release setting range to
1400 А
Instantaneous short-circuit release setting range from
80...1400 А
Trip indicator present
Yes
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of poles
3
Design
Complete unit in enclosure
DIN rail mounting (O-type) optional
No
Motor drive optional
Yes
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
50 кА
Rated voltage up to
690 В
Rated voltage from
400...690 В
Rated continuous current Iu
100 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
No
IP protection rating
IP30
Product/component type
Moulded case circuit breaker
Main electrical circuit connection type
Bolted connection
Control element type
Lever (toggle)
