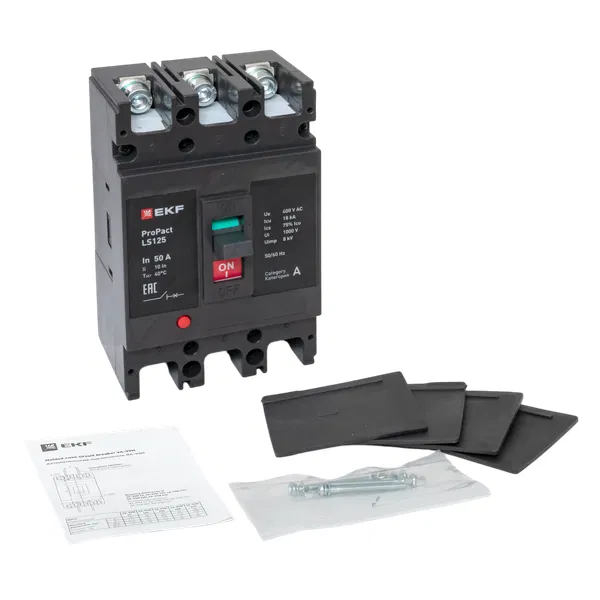

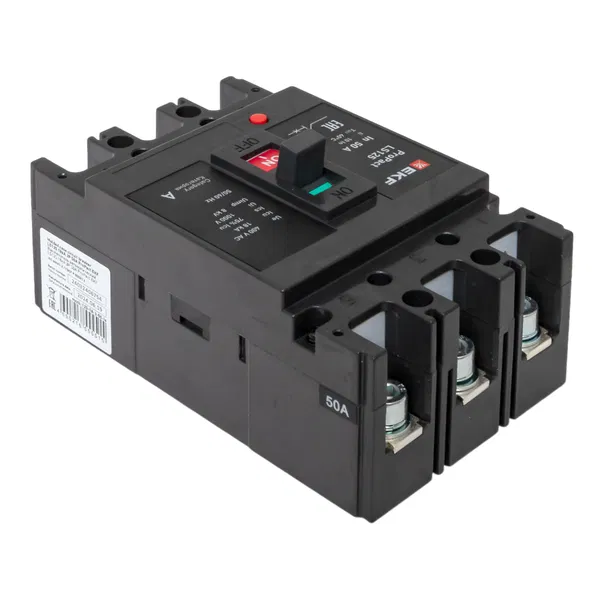

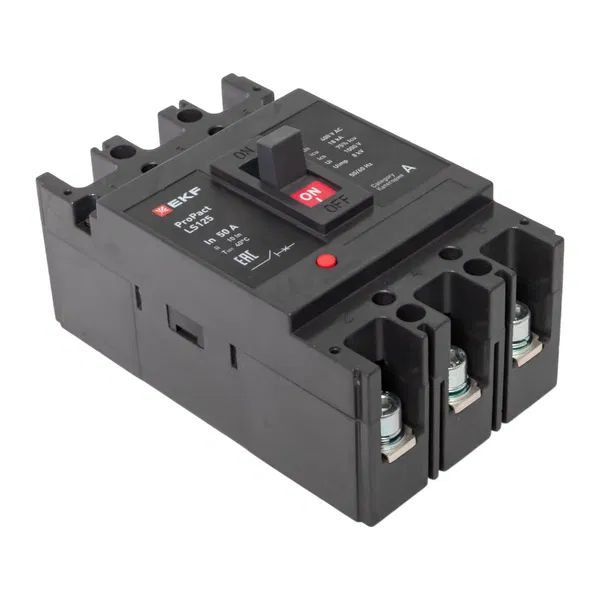

Molded Case Circuit Breaker ProPact LS125 50A 3P 18kA EKF mccb-125-18-3-50-ls
SKU: mccb-125-18-3-50-ls
ETIM: EC000228
9,004 ₽
Get back 90 ₽ in points
Analogues by specifications
Stock by warehouse

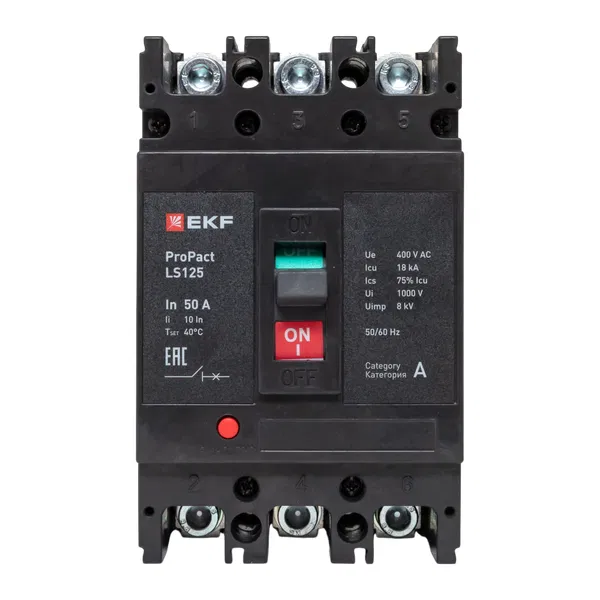

The LS ProPact switch is designed as a monoblock and consists of a base and a cover with a false panel, which has a window for the operating handle and a "Test" button pusher - for checking the switch trip mechanism. The base is made of heat-resistant, non-flammable plastic and serves as the load-bearing structure for the connection terminals, fixed and moving contacts with an arc-extinguishing system, the operating mechanism, and the overcurrent protection unit. The cover covers all moving elements of the operating mechanism and internal live parts. This series does not allow for the installation of accessories.
Main circuit connection type
Front side
Built-in ground fault protection
No
Built-in motor drive
No
Overload protection device setting range to
50 А
Setting range of overload protection device from
50...50 А
Instantaneous short-circuit release setting range to
500 А
Instantaneous short-circuit release setting range from
500...500 А
Trip indicator present
No
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of poles
3
Design
Complete unit in enclosure
DIN rail mounting (O-type) optional
No
Motor drive optional
No
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
18 кА
Rated voltage up to
400 В
Rated voltage from
400...400 В
Rated continuous current Iu
50 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
No
IP protection rating
IP30
Product/component type
Moulded case circuit breaker

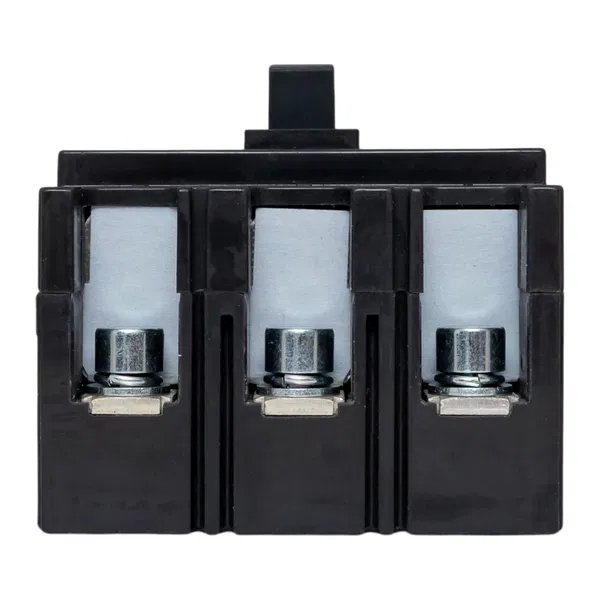

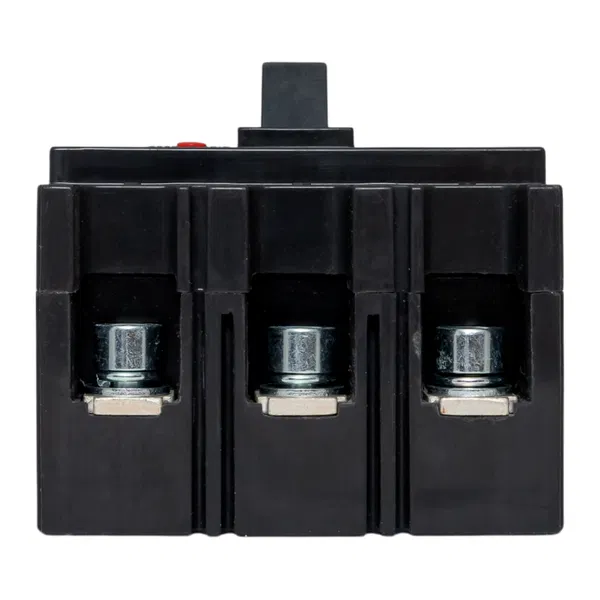

Main electrical circuit connection type
Bolted connection
