EKF

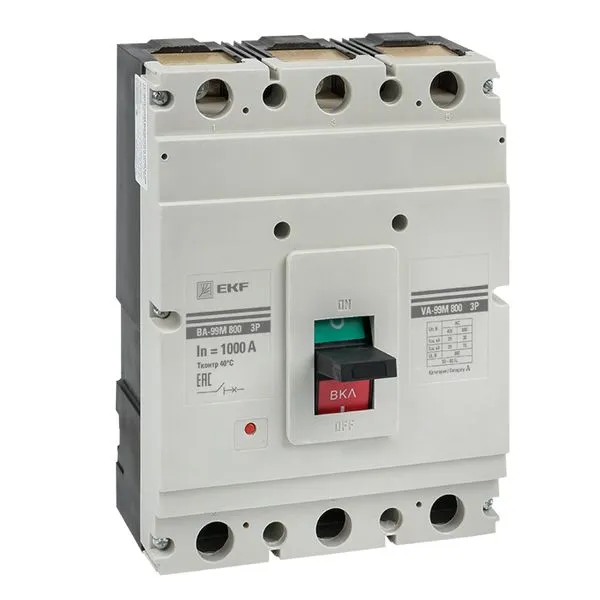

Molded case circuit breaker VA-99M 800/1000A 3P 10In 50kA with thermomagnetic release EKF mccb99-800-1000m
SKU: mccb99-800-1000m
ETIM: EC000228
77,837 ₽
Get back 778 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
VA-99M switch is designed as a monoblock and consists of a base and a cover with a false panel, which has a window for the control handle and a 'Test' button plunger to check the switch disconnection mechanism. The base is made of heat-resistant, non-flammable plastic and serves as the load-bearing structure for connection terminals, stationary and moving contacts with an arc suppression system, the control mechanism, and the overcurrent protection unit. The cover covers all moving elements of the control mechanism and internal live parts.
Main circuit connection type
Front side
Built-in ground fault protection
No
Built-in motor drive
No
Overload protection device setting range to
1000 А
Setting range of overload protection device from
1000...1000 А
Number of auxiliary NO contacts
0
Number of auxiliary break contacts
0
Number of poles
3
Design
Complete unit in enclosure
DIN rail mounting (O-type) optional
No
Motor drive optional
Yes
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
50 кА
Rated voltage up to
690 В
Rated voltage from
400...690 В
Rated continuous current Iu
1 000 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
No
IP protection rating
IP30
Product/component type
Moulded case circuit breaker
Main electrical circuit connection type
Bolted connection
Control element type
Lever (toggle)
