DEKraft

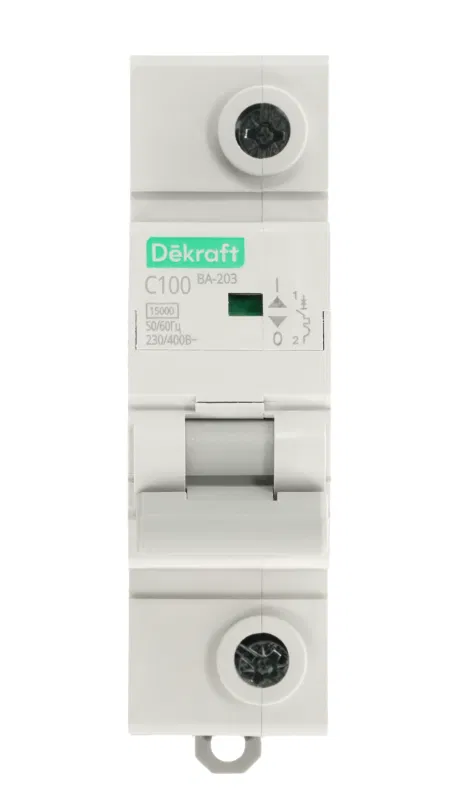

Circuit breaker 1p C 100A 15kA BA-203 DEKraft 13572DEK
SKU: 13572DEK
ETIM: EC000042
Price on request
Price list (incl. VAT):
7015 ₽
Preorder
VA-203 series circuit breaker Dekraft; 1P; rated current 100A; characteristic C; breaking capacity 15 kA; module width 27mm. Devices feature an instantaneous switching mechanism and 7 monolithic rivets that increase housing strength. Side cooling channels improve stability during operation at high ambient temperatures. There is an option to install additional accessories on both sides of the device. The device is 100% compatible with Dekraft and Systeme Electric enclosures and housings.
| Mounting installation depth | 72 мм |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V | 15 кА |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 15 кА |
| Rated impulse voltage | 6 кВ |
| Rated voltage | 230 В |
| Rated insulation voltage Ui | 500 В |
| Rated current | 100 А |
| Total number of poles | 1 |
| Ambient operating temperature to | 70 град.C |
| Ambient operating temperature from | -35 град.C |
| Current type | Alternating current (AC) |
| With switched neutral conductor | No |
| Pollution degree (number) | 3 |
| IP protection rating | IP20 |
| Tripping characteristic | It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. |
| Frequency at | 60 Гц |
| Frequency from | 50 Гц |
| Width in modular units | 1.5 |
