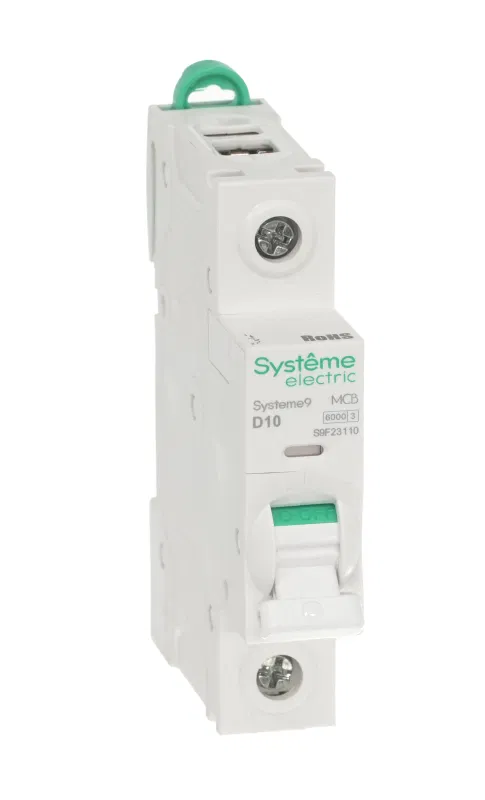

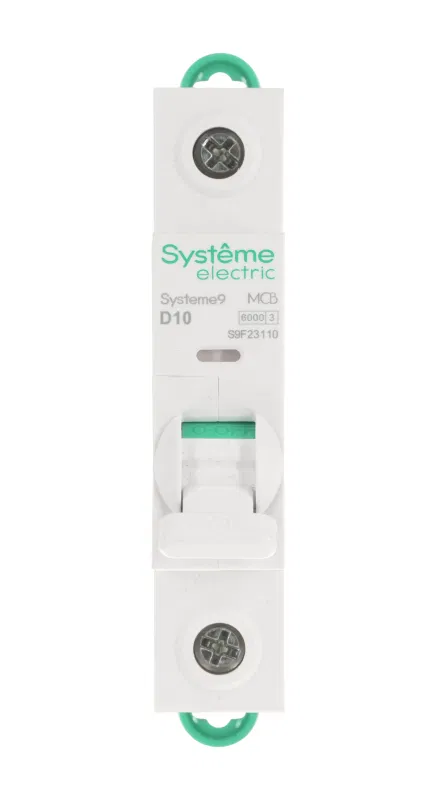

Circuit breaker 1p D 10A 6kA Systeme9 230V SE S9F23110 Systeme Electric
SKU: S9F23110
ETIM: EC000042
1150 ₽
Preorder

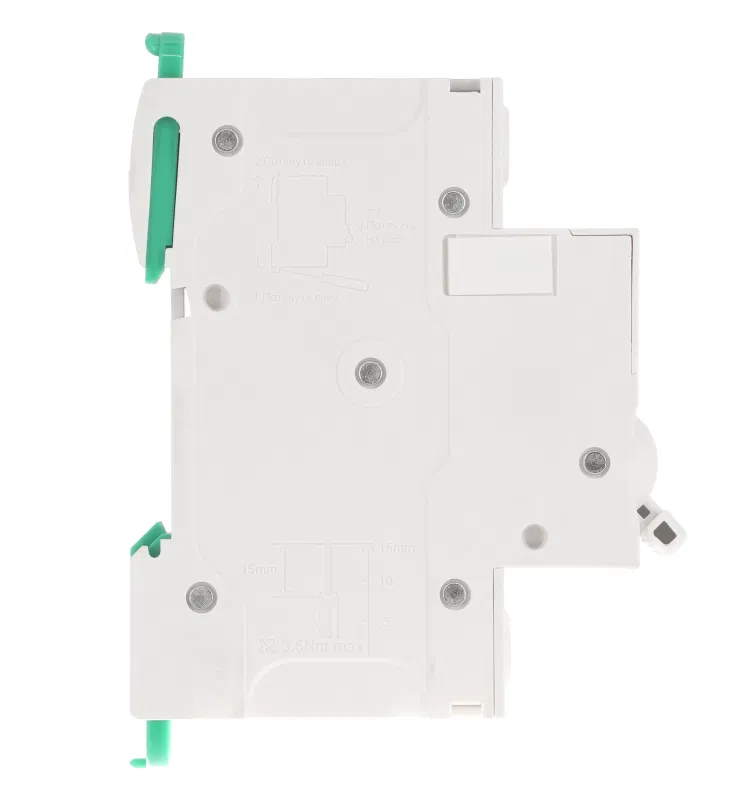

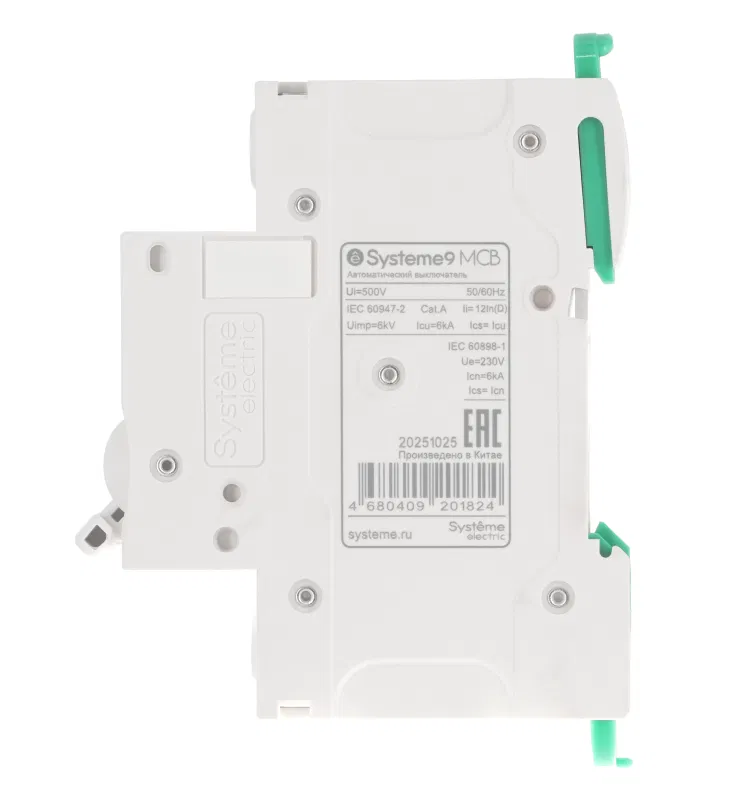

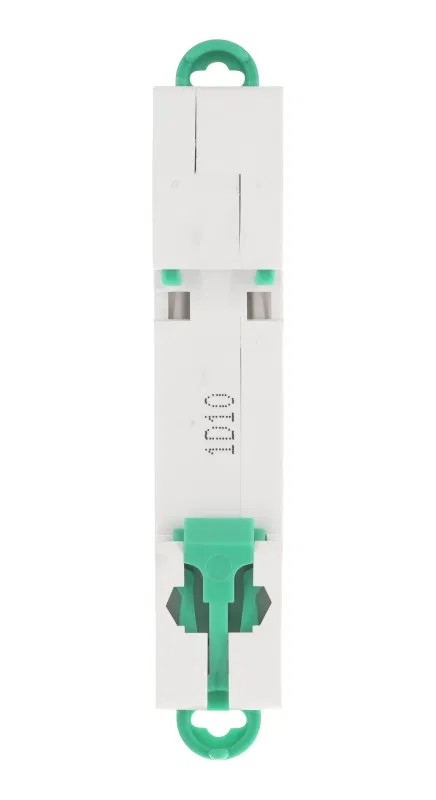

S9FN circuit breaker, Systeme9 series, Systeme Electric, 1-pole, rated current 10 A, characteristic D, Icn = 6 kA, Icu = 10 kA. Complies with the requirements of GOST IEC 6898-1 and GOST IEC 60947-2. Used in electrical networks with a voltage of 230 V. Designed to protect circuits from overloads and short-circuit currents. Equipped with double safe separate conductor terminals, an instantaneous switching mechanism, and indicators for contact group status and trip due to fault. Mounts on a DIN rail using two-position latches, with the possibility of dismantling without removing the PIN busbar.
| Mounting installation depth | 45 мм |
| Number of protected poles | 1 |
| Rated short-circuit breaking capacity Icu IEC 60898 at 400 V | 6 кА |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V | 10 кА |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 10 кА |
| Rated impulse voltage | 6 кВ |
| Rated voltage | 230 В |
| Rated insulation voltage Ui | 500 В |
| Rated current | 10 А |
| Total number of poles | 1 |
| Ambient operating temperature to | 70 град.C |
| Ambient operating temperature from | -35 град.C |
| Current type | Alternating current (AC) |
| Flexible stranded conductor cross-section up to | 16 кв.мм |
| Stranded flexible conductor cross-section from | 1 кв.мм |
| Solid conductor cross-section to | 25 кв.мм |
| Solid conductor cross-section from | 1 кв.мм |
| Pollution degree (number) | 3 |
| IP protection rating | IP20 |
| Tripping characteristic | It seems your message was cut short. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. |
| Frequency at | 60 Гц |
| Frequency from | 50 Гц |
| Width in modular units | 1 |
