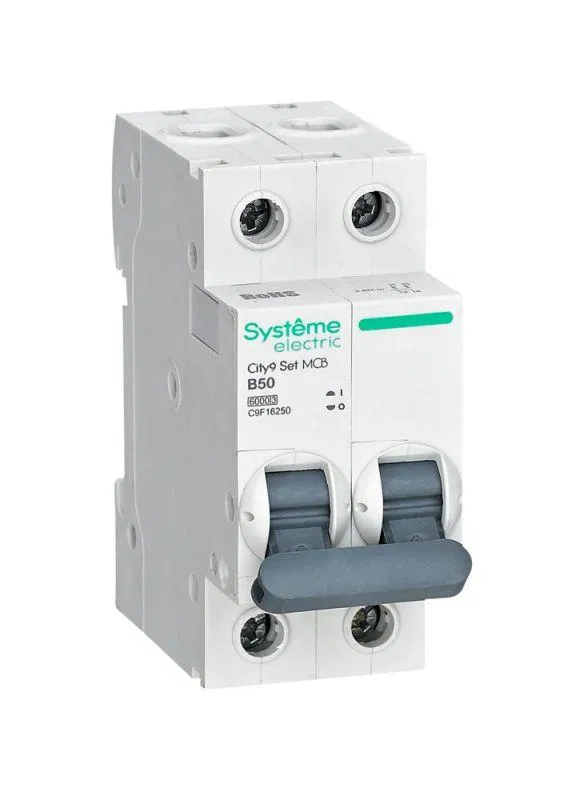

Circuit breaker 2p City9 Set (MCB) B 50A 6kA 230V SE C9F16250 Systeme Electric
SKU: C9F16250
ETIM: EC000042
10,638 ₽
Get back 106 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 6 шт
Analogues by specifications
Stock by warehouse
City9 Set Systeme Electric series circuit breaker, 2-pole, rated current 50 A, characteristic B, Icn = 6 kA. Applied in electrical networks with voltage 230 V. Designed for protection against overloads and short-circuit currents. Equipped with an "instantaneous switching" mechanism. Impact-resistant housing made of special plastic with 6 metal rivets. Safe terminals prevent cables from entering the terminal space.
Mounting installation depth
45 мм
Number of protected poles
2
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
6 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
6 кА
Rated voltage
230 В
Rated insulation voltage Ui
440 В
Rated current
50 А
Total number of poles
2
Current type
Alternating current (AC)
With switched neutral conductor
Yes
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
1 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1 кв.мм
Pollution degree (number)
2
IP protection rating
IP20
Tripping characteristic
B
Frequency at
60 Гц
Frequency from
50 Гц
Width in modular units
2
