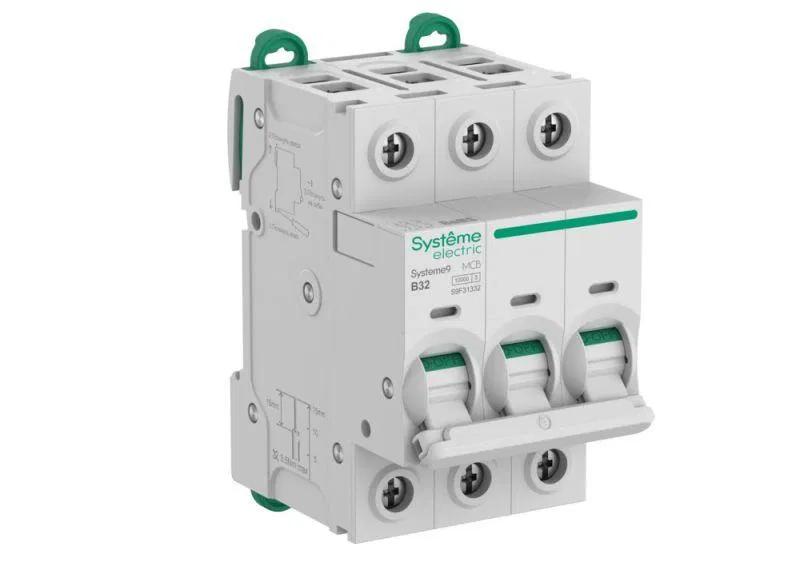

Circuit breaker 3p B 32A 10kA Systeme9 400V SE S9F31332 Systeme Electric
SKU: S9F31332
ETIM: EC000042
5987 ₽
Price list (incl. VAT):
9211 ₽
Preorder
S9FH automatic circuit breaker, Systeme9 series, Systeme Electric, 3-pole, rated current 32 A, characteristic B, Icn = 10 kA, Icu = 15 kA. Complies with the requirements of standards GOST IEC 60898-1 and GOST IEC 60947-2. Used in electrical networks with voltage 400 V. Designed to protect circuits from overloads and short-circuit currents. Equipped with double safe separate conductor terminals, instantaneous switching mechanism, contact group status indicators and trip indicators due to fault. Mounted on a DIN rail using two-position latches, with the possibility of dismantling without removing the PIN busbar.
| Mounting installation depth | 45 мм |
| Number of protected poles | 3 |
| Rated short-circuit breaking capacity Icu IEC 60898 at 400 V | 10 кА |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V | 30 кА |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 15 кА |
| Rated impulse voltage | 6 кВ |
| Rated voltage | 400 В |
| Rated insulation voltage Ui | 500 В |
| Rated current | 32 А |
| Total number of poles | 3 |
| Ambient operating temperature to | 70 град.C |
| Ambient operating temperature from | -35 град.C |
| Current type | Alternating current (AC) |
| Flexible stranded conductor cross-section up to | 16 кв.мм |
| Stranded flexible conductor cross-section from | 1 кв.мм |
| Solid conductor cross-section to | 25 кв.мм |
| Solid conductor cross-section from | 1 кв.мм |
| Pollution degree (number) | 3 |
| IP protection rating | IP20 |
| Tripping characteristic | Please provide the text you would like me to translate. |
| Frequency at | 60 Гц |
| Frequency from | 50 Гц |
| Width in modular units | 3 |
