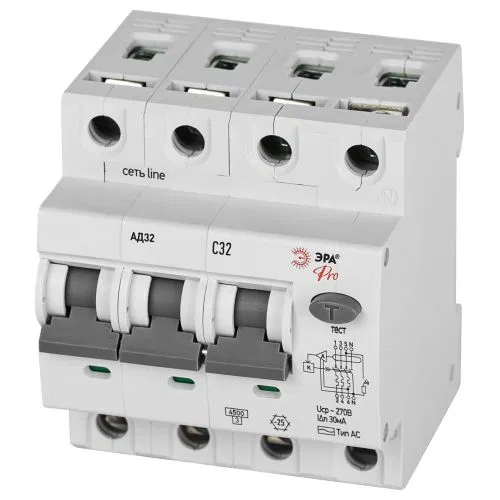

Residual current circuit breaker 3P+N C 32A 30mA type AC protection 230V RCCB 4.5kA PRO D32E4C32AC30P AD32 electronic Era Б0057796
SKU: Б0057796
ETIM: EC000905
1,325 ₽
Get back 13 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Mounting installation depth
71 мм
For flush mounting
Yes
False tripping protection
No
Number of protected poles
3
Rated breaking capacity per IEC 60947-2
6 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
4.5 кА
Rated short-circuit breaking capacity per EN 61009
4.5 кА
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
32 А
Rated leakage current
.03 мА
Total number of poles
4
Ambient operating temperature to
50 град.C
Ambient operating temperature from
-25 град.C
Current type
Alternating current (AC)
With switched neutral conductor
Yes
With interlock device
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1 кв.мм
Pollution degree (number)
2
IP protection rating
IP20
Residual current type
Alternating current (AC)
Tripping characteristic
Without time delay
Tripping characteristic
C
Frequency (Hz)
50 Hz
Width in modular units
4
