DKC

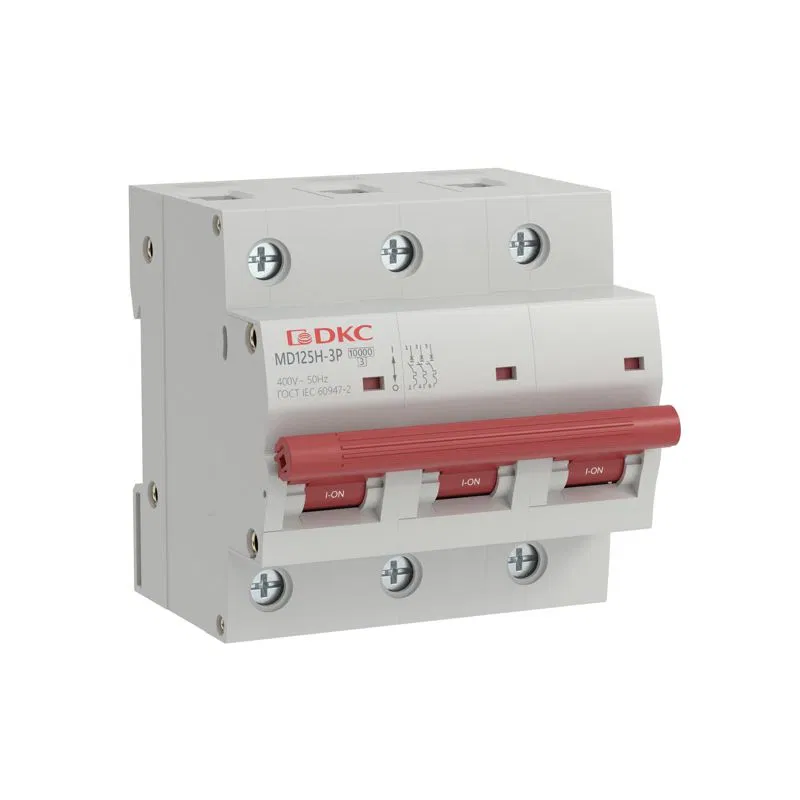

Modular circuit breaker YON max (YON max) type MD125, 3 poles, curve D, 80A, 10kA MD125H-3PD80 DKC
SKU: MD125H-3PD80
ETIM: EC000042
2,319 ₽
Get back 23 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Additional equipment possible
Yes
Mounting installation depth
77.3 мм
Overvoltage category
4
Current limiting class
3
Number of protected poles
3
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V
10 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V
10 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated impulse voltage
10 кВ
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
80 А
Total number of poles
3
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-25 град.C
Current type
Alternating current (AC)
With switched neutral conductor
No
Flexible stranded conductor cross-section up to
35 кв.мм
Stranded flexible conductor cross-section from
35 кв.мм
Solid conductor cross-section to
50 кв.мм
Solid conductor cross-section from
50 кв.мм
Pollution degree (number)
3
IP protection rating
IP20
Tripping characteristic
D
Frequency at
50 Гц
Frequency from
50 Гц
Width in modular units
4.5
