DKC

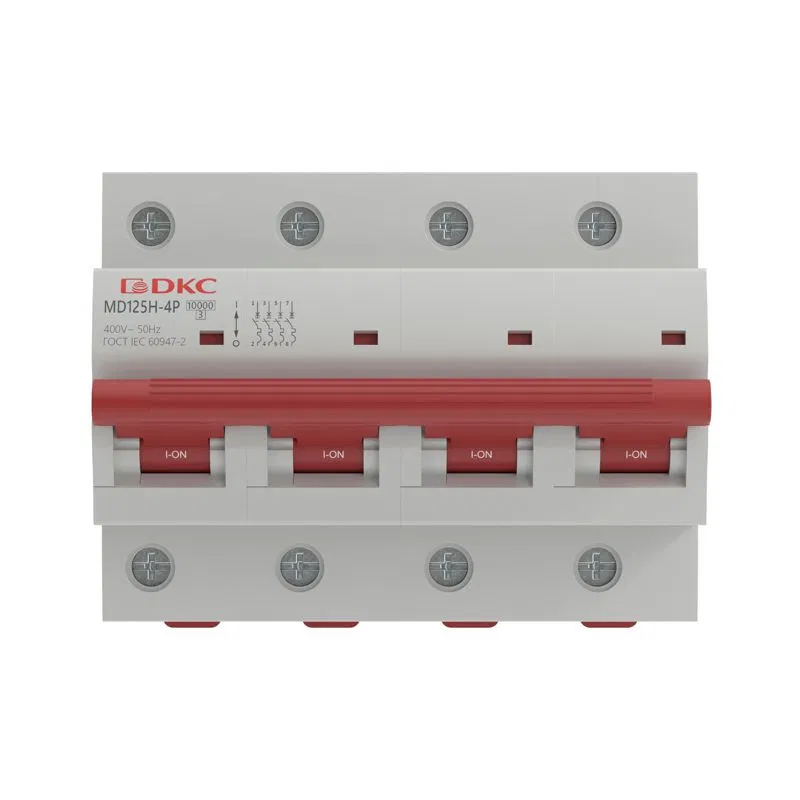

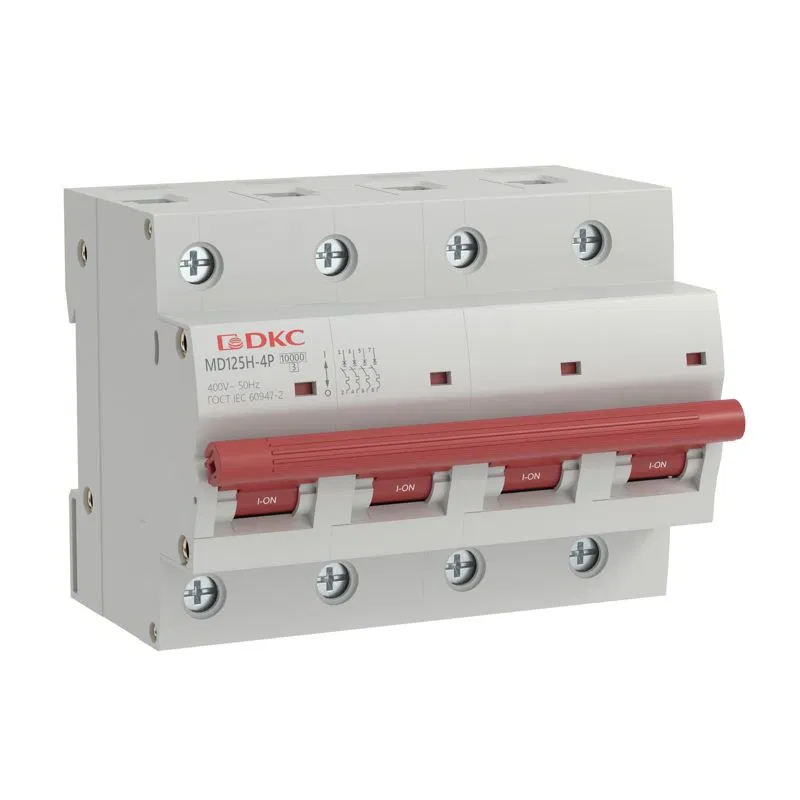

Modular circuit breaker YON max (YON max) type MD125, 4 poles, curve C, 100A, 10kA MD125H-4PC100 DKC
SKU: MD125H-4PC100
ETIM: EC000042
2,989 ₽
Get back 29 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Additional equipment possible
Yes
Mounting installation depth
77.3 mm
Overvoltage category
4
Current limiting class
3
Number of protected poles
4
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V
10 kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V
10 kA
Rated breaking capacity in accordance with EN 60898
10 kA
Rated impulse voltage
10 kV
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated current
100 A
Total number of poles
4
Ambient operating temperature to
40 °C
Ambient operating temperature from
-25 °C
Current type
Alternating current (AC)
With switched neutral conductor
Yes
Flexible stranded conductor cross-section up to
35 mm²
Stranded flexible conductor cross-section from
35 mm²
Solid conductor cross-section to
50 mm²
Solid conductor cross-section from
50 mm²
Pollution degree (number)
3
IP protection rating
IP20
Tripping characteristic
C
Frequency at
50 Hz
Frequency from
50 Hz
Width in modular units
6
