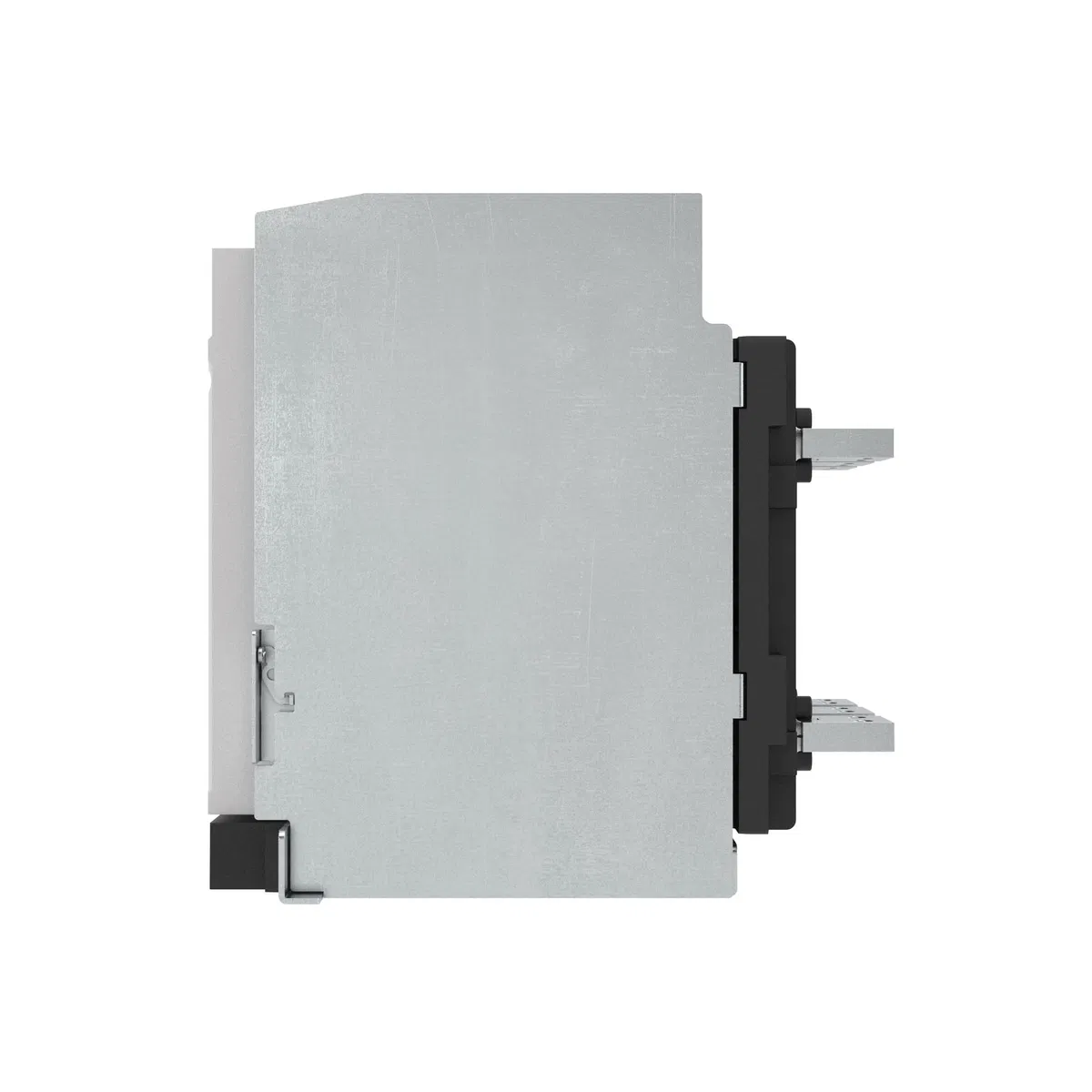

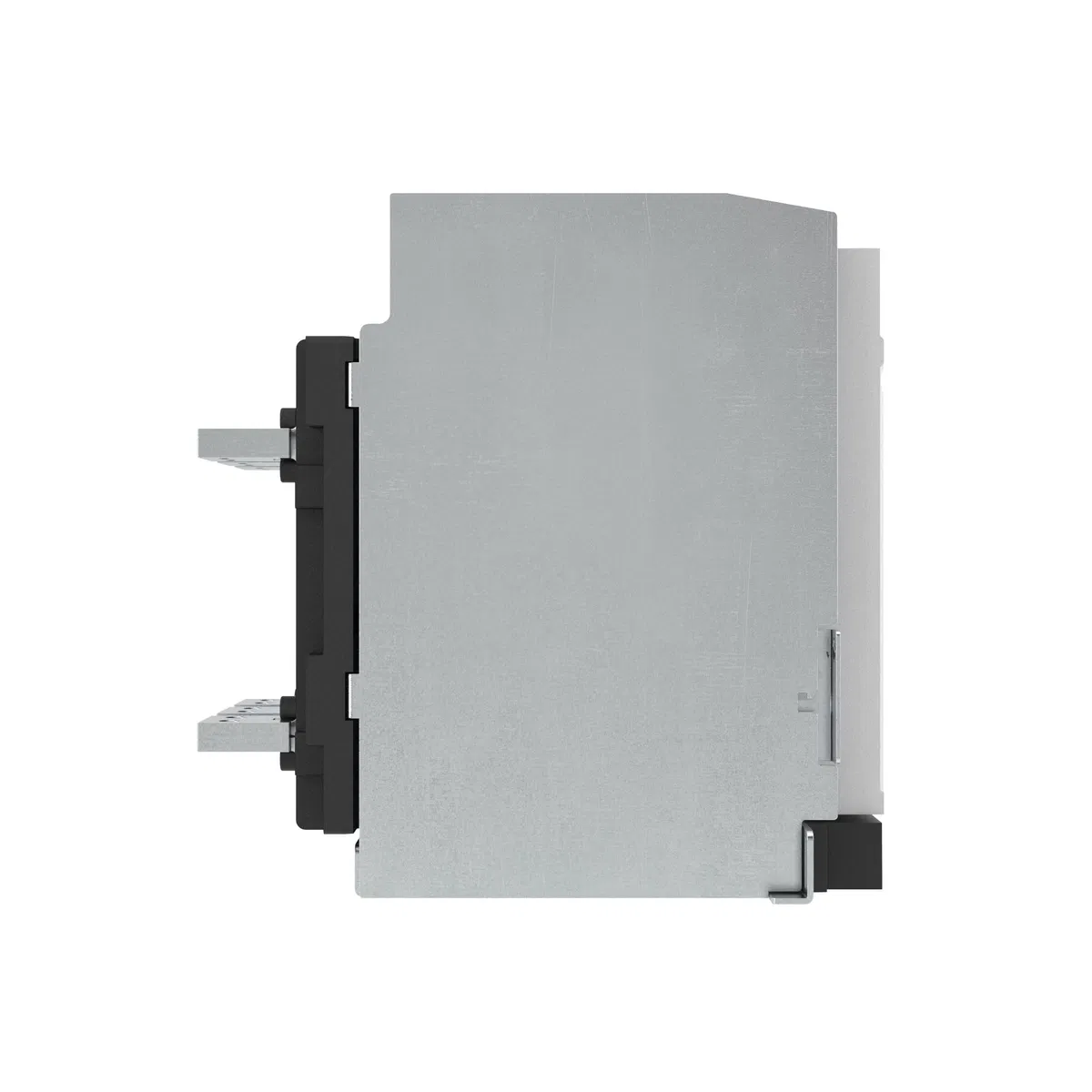

Air circuit breaker YON pro ANX10N 3P 1000 A 66 kA, frame size S, ETH trip unit, withdrawable, horizontal/vertical connection, 220 V AC control ANX10NS3DH722200K DKC
SKU: ANX10NS3DH722200K
ETIM: EC000228
591,953 ₽
Get back 5,919 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. It is used for switching operations, as well as protection against overloads, short circuits, and ground faults. Rated current 1000 A, breaking capacity 66 kA, 3-pole, withdrawable version, freely orientable power terminals, ETH trip unit, control 220 V AC.
Built-in ground fault protection
Yes
Overload protection device setting range to
1000 А
Setting range of overload protection device from
400 А
Number of auxiliary NO contacts
6
Number of auxiliary changeover contacts
6
Number of auxiliary break contacts
6
Number of poles
3
Design
Built-in withdrawable device
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
66 кА
Rated voltage up to
690 В
Rated voltage from
400 В
Rated continuous current Iu
1000 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
No
IP protection rating
IP20
