DKC

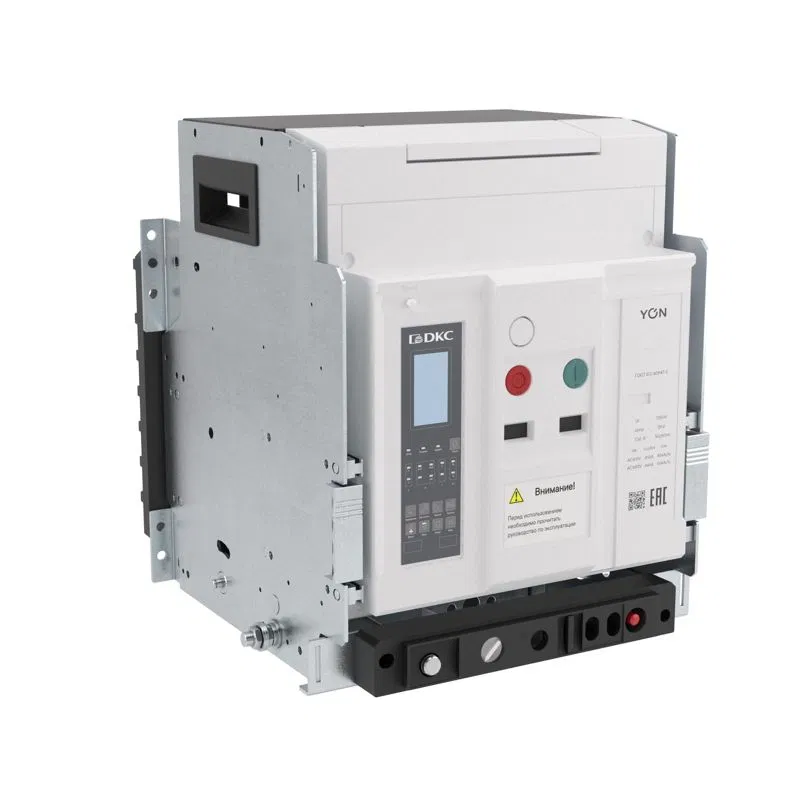

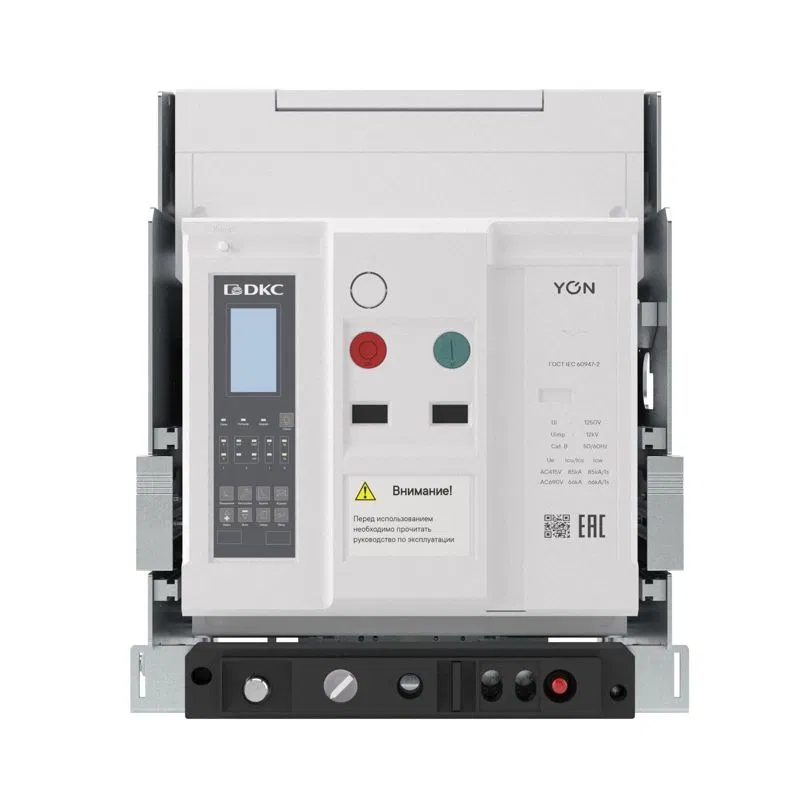

Air circuit breaker YON pro ANX12H 3P 1250 A 85 kA, frame size N, trip unit ETH, withdrawable, horizontal/vertical connection, control 220 V AC ANX12HN3DH722200K DKC
SKU: ANX12HN3DH722200K
ETIM: EC000228
816,881 ₽
Get back 8,168 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. Used for making and breaking circuits, as well as for protection against overloads, short circuits, and ground faults. Rated current 1250 A, breaking capacity 85 kA, 3-pole, withdrawable design, free-orientable power terminals, ETH trip unit, 220 V AC control.
Built-in ground fault protection
Yes
Overload protection device setting range to
1250 А
Setting range of overload protection device from
500 А
Number of auxiliary NO contacts
6
Number of auxiliary changeover contacts
6
Number of auxiliary break contacts
6
Number of poles
3
Design
Built-in withdrawable device
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
85 кА
Rated voltage up to
690 В
Rated voltage from
400 В
Rated continuous current Iu
1250 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
No
IP protection rating
IP20
