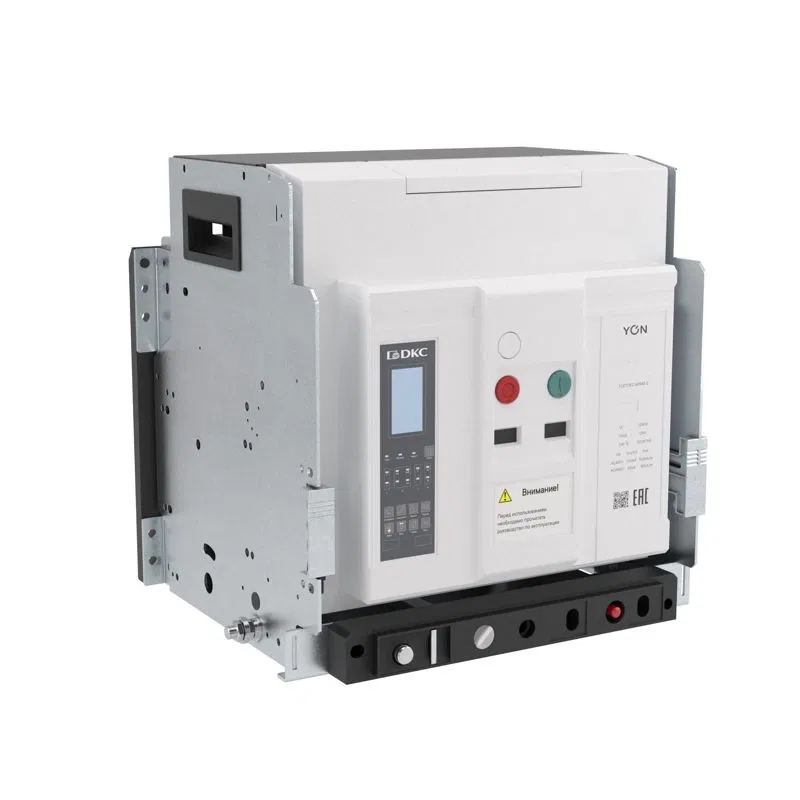

Air circuit breaker YON pro ANX25X 3P 2500 A 100 kA, frame size M, trip unit ETH, withdrawable, vertical connection, control 220 V AC ANX25XM3DV722220K DKC
SKU: ANX25XM3DV722220K
ETIM: EC000228
1278077 ₽
Price list (incl. VAT):
1825824 ₽
Preorder
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. It is used for making and breaking load currents, as well as for protection against overloads, short circuits, and ground faults. Rated current 2500A, breaking capacity 100 kA, 3-pole, withdrawable type, vertical power terminals, ETH release, closing coil, motor operator, shunt trip, undervoltage release, 220 V AC control
| Built-in ground fault protection | Yes |
| Overload protection device setting range to | 2500 А |
| Setting range of overload protection device from | 1000 А |
| Number of auxiliary NO contacts | 6 |
| Number of auxiliary changeover contacts | 6 |
| Number of auxiliary break contacts | 6 |
| Number of poles | 3 |
| Design | Built-in withdrawable device |
| Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz | 100 кА |
| Rated voltage up to | 690 В |
| Rated voltage from | 690 В |
| Rated continuous current Iu | 2500 А |
| Suitable for DIN-rail mounting | No |
| With minimum voltage protection | Yes |
| IP protection rating | IP20 |
