DKC

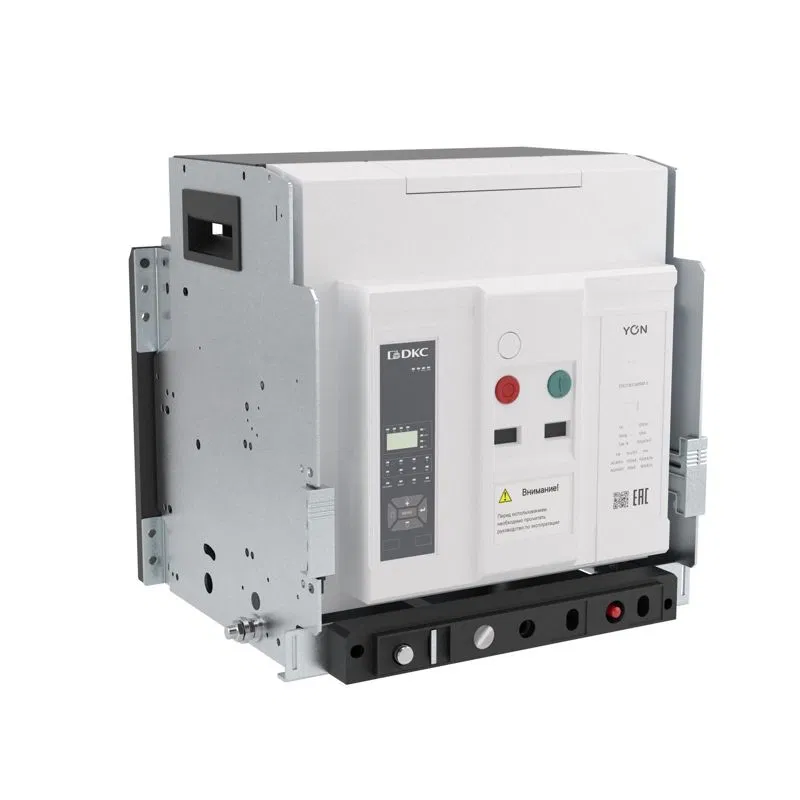

Air circuit breaker YON pro ANX32X 3P 3200 A 100 kA, frame size M, trip unit ETA, withdrawable, vertical connection, control 220 V AC ANX32XM3DV522220K DKC
SKU: ANX32XM3DV522220K
ETIM: EC000228
1,329,111 ₽
Get back 13,291 ₽ in points
Analogues by specifications
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. It is used for operational switching and making/breaking, as well as for protection against overloads, short circuits, and earth faults. Rated current 3200A, breaking capacity 100 kA, 3-pole, withdrawable version, vertical power terminals, ETA trip unit, closing coil, motor operator, shunt trip, undervoltage release, 220 V AC control
Built-in ground fault protection
Yes
Overload protection device setting range to
3200 А
Setting range of overload protection device from
1280 А
Number of auxiliary NO contacts
6
Number of auxiliary changeover contacts
6
Number of auxiliary break contacts
6
Number of poles
3
Design
Built-in withdrawable device
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
100 кА
Rated voltage up to
690 В
Rated voltage from
690 В
Rated continuous current Iu
3200 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
Yes
IP protection rating
IP20
