DKC

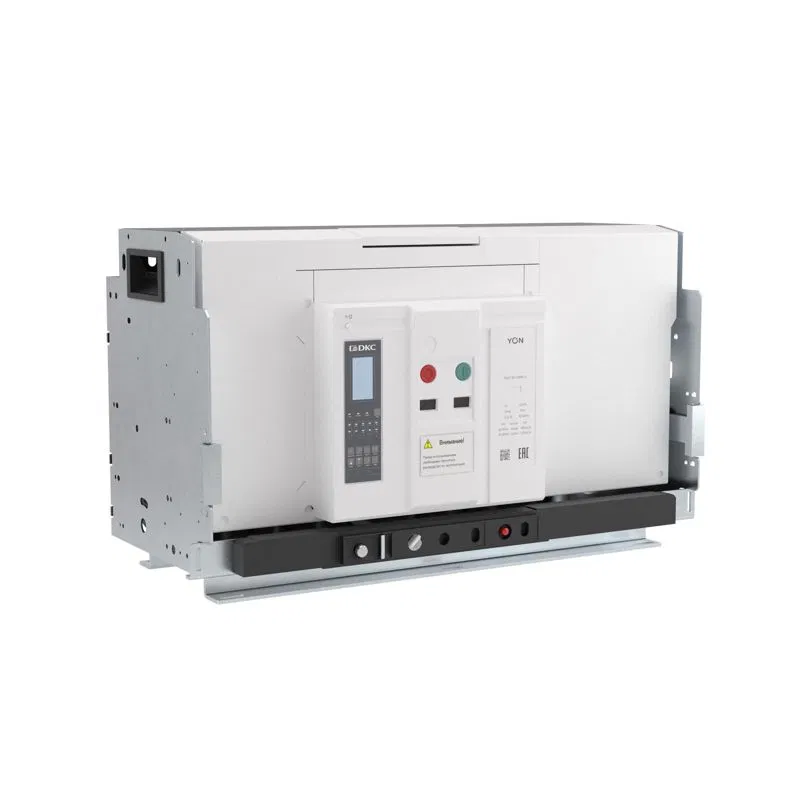

Air circuit breaker 3p 4000A setting range 1600...4000A 160kA YON pro ANX40U frame H trip ETE withdrawable vertical connection control 220V AC YON ANX40UH3DV622220K YON (DKC group)
SKU: ANX40UH3DV622220K
ETIM: EC000228
2,657,286 ₽
Get back 26,572 ₽ in points
Analogues by specifications
Air automatic circuit breaker YON pro ANX series is designed for operation in low voltage networks up to 690 V. It is used for making and breaking load currents, as well as for protection against overloads, short circuits, and ground faults. Rated current 4000A, breaking capacity 160 kA, 3-pole, withdrawable type, vertical power terminals, ETE trip unit, closing coil, motor operator, shunt trip, undervoltage release, control 220 V AC
Built-in ground fault protection
Yes
Overload protection device setting range to
4000 А
Setting range of overload protection device from
1600 А
Number of auxiliary NO contacts
6
Number of auxiliary changeover contacts
6
Number of auxiliary break contacts
6
Number of poles
3
Design
Built-in withdrawable device
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
160 кА
Rated voltage up to
690 В
Rated voltage from
690 В
Rated continuous current Iu
4000 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
Yes
IP protection rating
IP20
