DKC

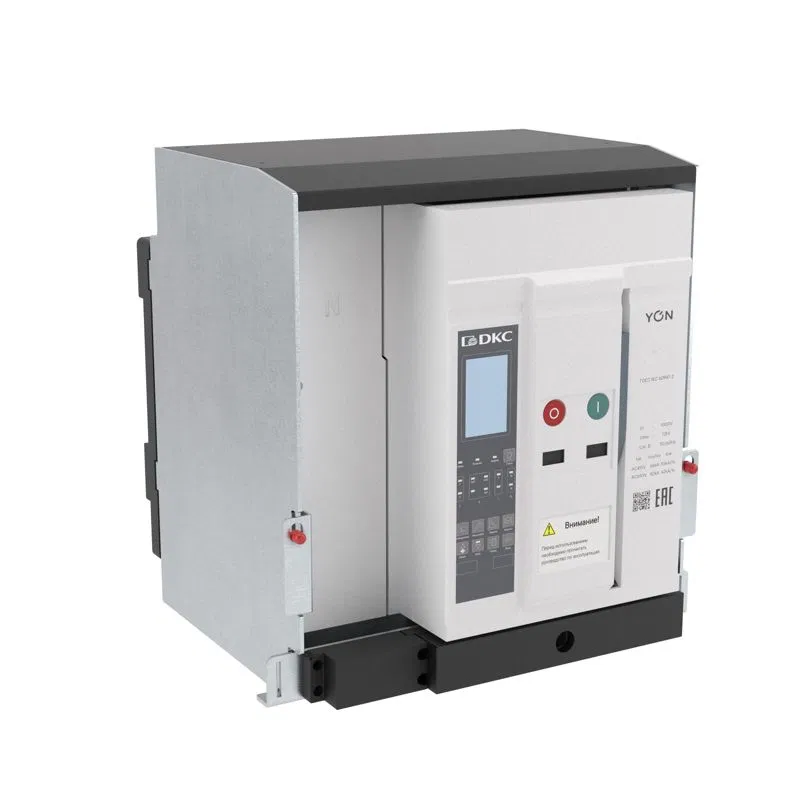

Air circuit breaker YON pro ANX10N 4P 1000 A 66 kA, frame size S, trip unit ETE, withdrawable, vertical connection, control 220 V AC ANX10NS4DV622220K DKC
SKU: ANX10NS4DV622220K
ETIM: EC000228
666,747 ₽
Get back 6,667 ₽ in points
Analogues by specifications
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. It is used for operational switching and making/breaking, as well as for protection against overloads, short circuits, and earth faults. Rated current 1000A, breaking capacity 66 kA, 4-pole, withdrawable version, vertical power terminals, ETE trip unit, closing coil, motor operator, shunt trip, undervoltage release, 220 V AC control
Built-in ground fault protection
Yes
Overload protection device setting range to
1000 А
Setting range of overload protection device from
400 А
Number of auxiliary NO contacts
6
Number of auxiliary changeover contacts
6
Number of auxiliary break contacts
6
Number of poles
4
Design
Built-in withdrawable device
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
66 кА
Rated voltage up to
690 В
Rated voltage from
690 В
Rated continuous current Iu
1000 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
Yes
IP protection rating
IP20
