DKC

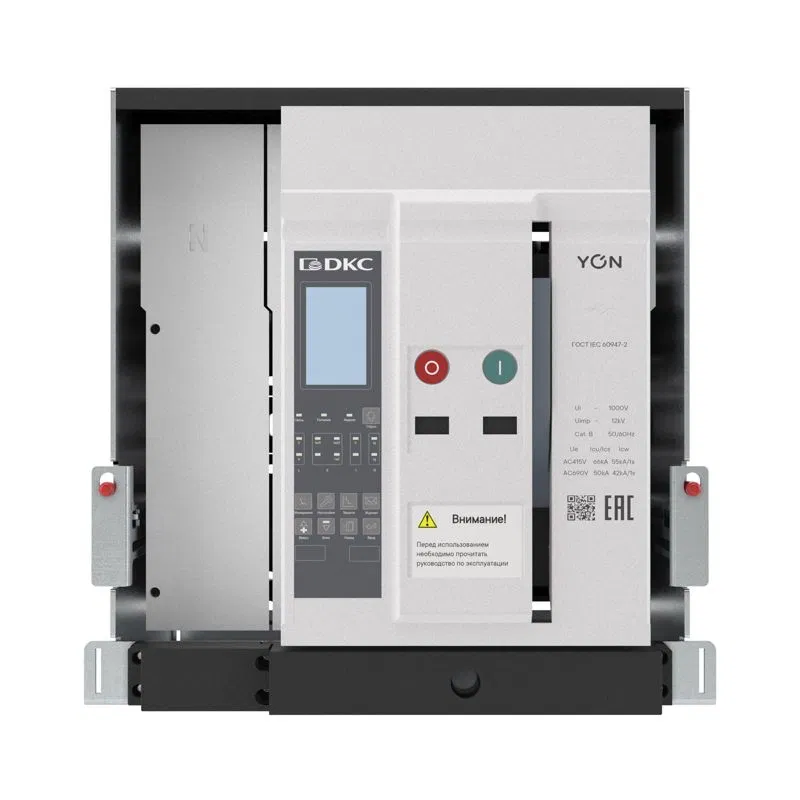

Air automatic circuit breaker YON pro ANX12N 4P 1250 A 66 kA, frame size S, ETH trip unit, withdrawable, horizontal/vertical connection, 220 V AC control ANX12NS4DH722200K DKC
SKU: ANX12NS4DH722200K
ETIM: EC000228
765,129 ₽
Get back 7,651 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. It is used for switching operations, as well as for protection against overloads, short circuits, and earth faults. Rated current 1250 A, breaking capacity 66 kA, 4-pole, withdrawable version, freely orientable power terminals, ETH trip unit, control 220 V AC
Built-in ground fault protection
Yes
Overload protection device setting range to
1250 А
Setting range of overload protection device from
500 А
Number of auxiliary NO contacts
6
Number of auxiliary changeover contacts
6
Number of auxiliary break contacts
6
Number of poles
4
Design
Built-in withdrawable device
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
66 кА
Rated voltage up to
690 В
Rated voltage from
400 В
Rated continuous current Iu
1250 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
No
IP protection rating
IP20
