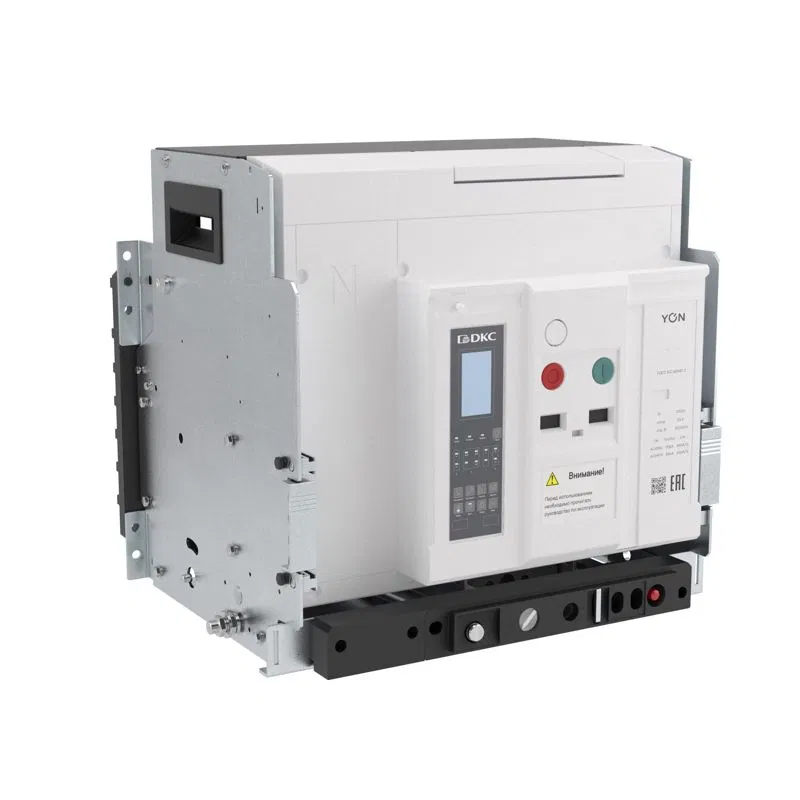

Air automatic circuit breaker YON pro ANX16H 4P 1600 A 85 kA, frame size N, trip unit ETH, withdrawable, vertical connection, control 220 V AC ANX16HN4DV722220K DKC
SKU: ANX16HN4DV722220K
ETIM: EC000228
1,104,059 ₽
Get back 11,040 ₽ in points
Analogues by specifications
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. It is used for operational switching and disconnection, as well as for protection against overloads, short circuits, and ground faults. Rated current 1600A, breaking capacity 85 kA, 4-pole, withdrawable version, vertical power terminals, ETH trip unit, closing coil, motor operator, shunt trip, undervoltage release, 220 V AC control
Built-in ground fault protection
Yes
Overload protection device setting range to
1600 А
Setting range of overload protection device from
640 А
Number of auxiliary NO contacts
6
Number of auxiliary changeover contacts
6
Number of auxiliary break contacts
6
Number of poles
4
Design
Built-in withdrawable device
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
85 кА
Rated voltage up to
690 В
Rated voltage from
690 В
Rated continuous current Iu
1600 А
Suitable for DIN-rail mounting
No
With minimum voltage protection
Yes
IP protection rating
IP20
