DKC

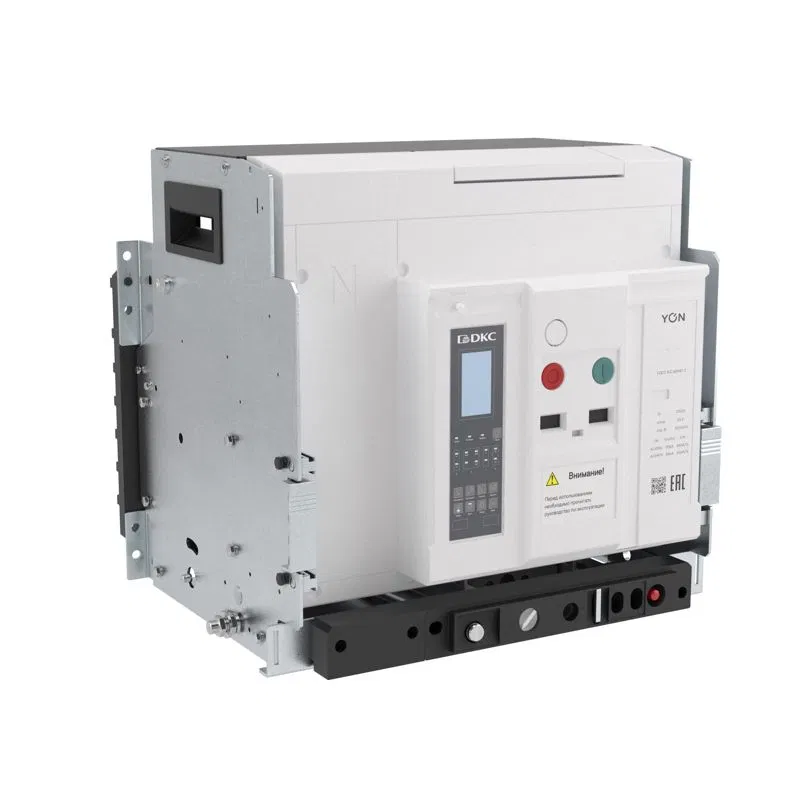

Air circuit breaker YON pro ANX25H 4P 2500 A 85 kA, frame size N, trip unit ETH, withdrawable, vertical connection, control 220 V AC ANX25HN4DV722220K DKC
SKU: ANX25HN4DV722220K
ETIM: EC000228
1297980 ₽
Price list (incl. VAT):
1854257 ₽
Preorder
YON pro ANX series air circuit breaker is designed for operation in low-voltage networks up to 690 V. It is used for operating switching and disconnections, as well as for protection against overloads, short circuits, and ground faults. Rated current 2500A, breaking capacity 85 kA, 4-pole, withdrawable type, vertical power terminals, ETH trip unit, closing coil, motor drive, independent trip, undervoltage release, 220 V AC control
| Built-in ground fault protection | Yes |
| Overload protection device setting range to | 2500 А |
| Setting range of overload protection device from | 1000 А |
| Number of auxiliary NO contacts | 6 |
| Number of auxiliary changeover contacts | 6 |
| Number of auxiliary break contacts | 6 |
| Number of poles | 4 |
| Design | Built-in withdrawable device |
| Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz | 85 кА |
| Rated voltage up to | 690 В |
| Rated voltage from | 690 В |
| Rated continuous current Iu | 2500 А |
| Suitable for DIN-rail mounting | No |
| With minimum voltage protection | Yes |
| IP protection rating | IP20 |
