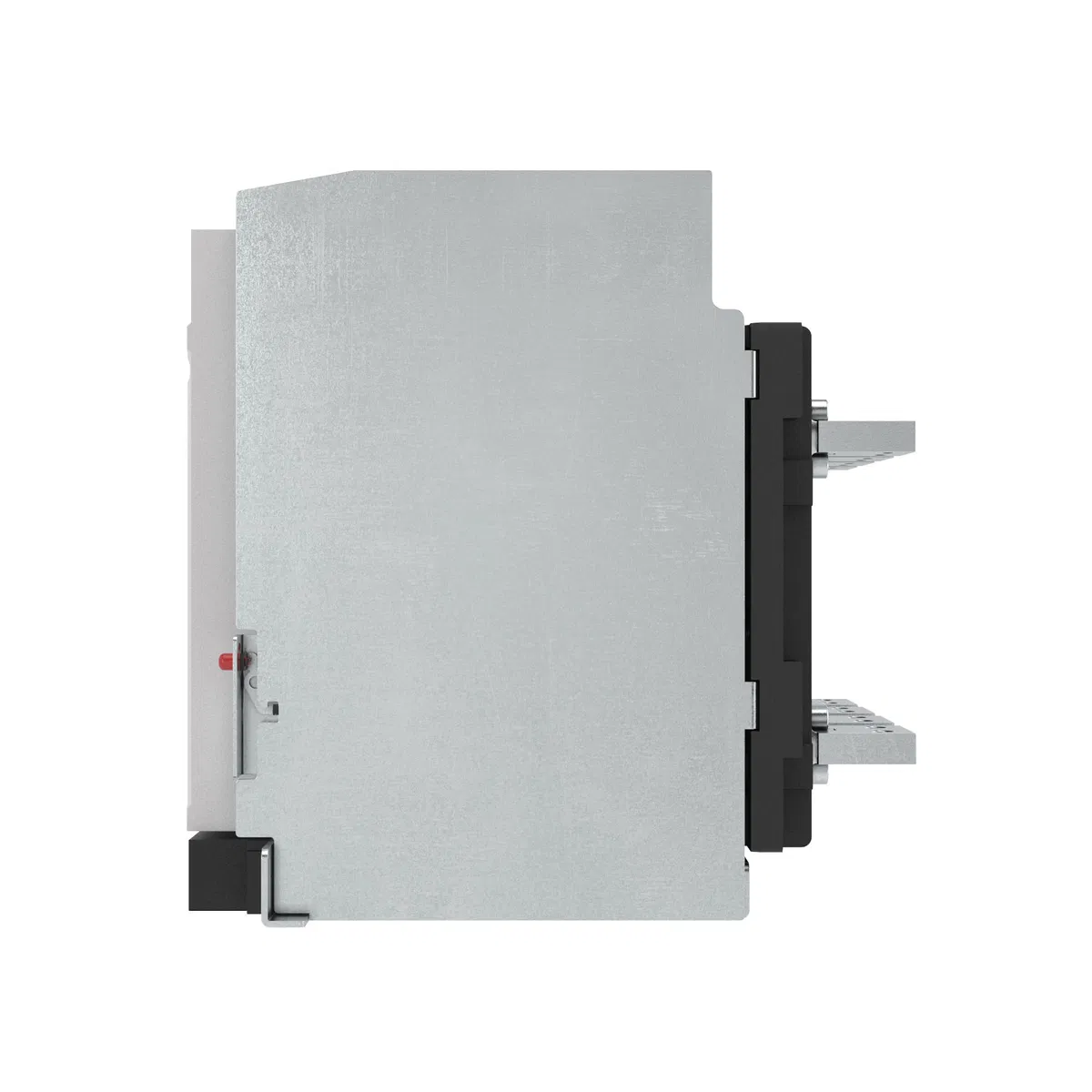

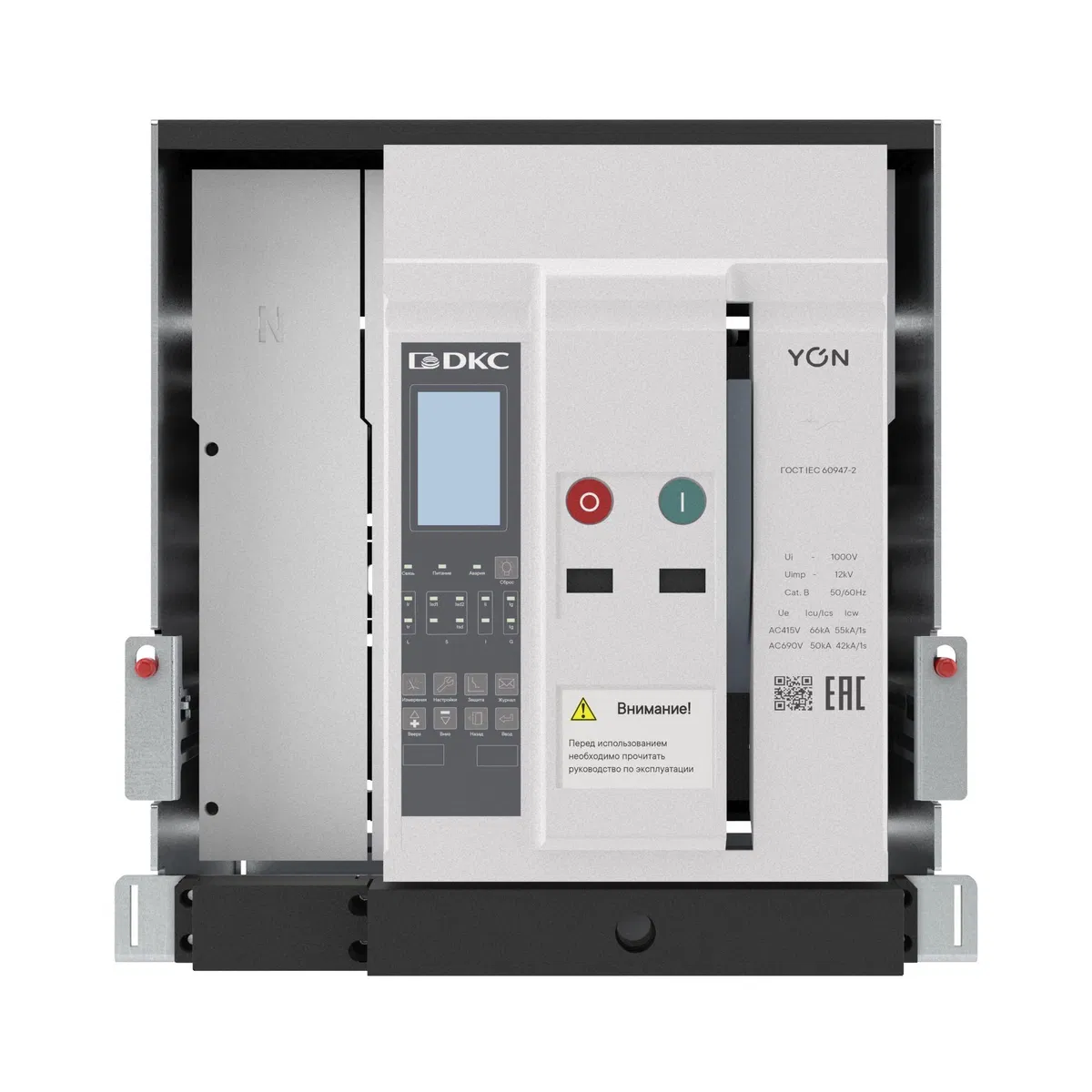

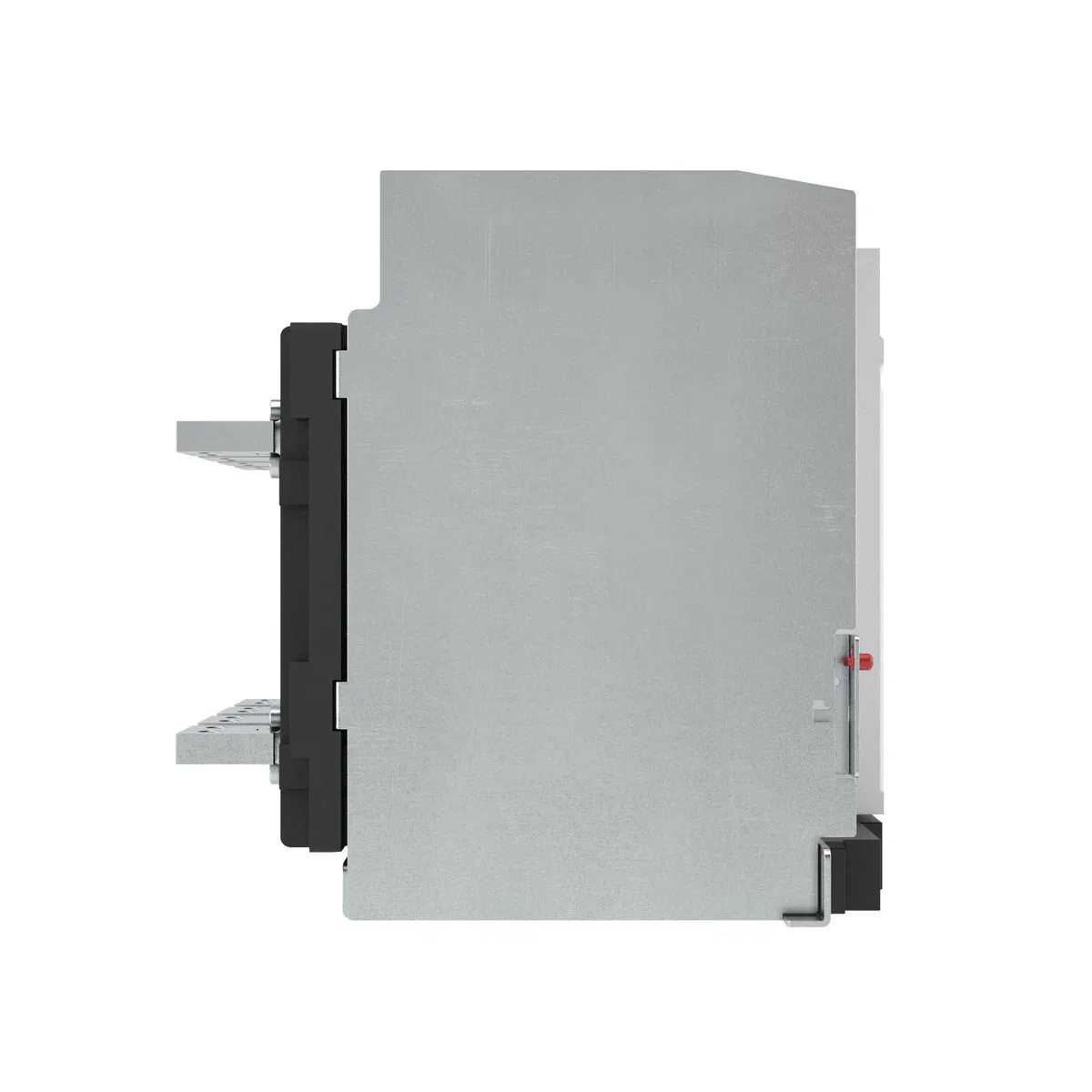

Air circuit breaker YON pro ANX06N 4P 630 A 66 kA, frame size S, trip unit ETH, withdrawable, horizontal connection, control 220 V AC ANX06NS4DH722220K DKC
SKU: ANX06NS4DH722220K
ETIM: EC000228
727076 ₽
Price list (incl. VAT):
1038680 ₽
Preorder
YON pro ANX series air circuit breaker is designed for operation in low voltage networks up to 690 V. It is used for operational switching and making/breaking, as well as for protection against overloads, short circuits, and earth faults. Rated current 630 A, breaking capacity 66 kA, 4-pole, withdrawable version, horizontal power terminals, ETH trip unit, closing coil, motor operator, shunt trip, undervoltage release, 220 V AC control
| Built-in ground fault protection | Yes |
| Overload protection device setting range to | 630 А |
| Setting range of overload protection device from | 252 А |
| Number of auxiliary NO contacts | 6 |
| Number of auxiliary changeover contacts | 6 |
| Number of auxiliary break contacts | 6 |
| Number of poles | 4 |
| Design | Built-in withdrawable device |
| Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz | 66 кА |
| Rated voltage up to | 690 В |
| Rated voltage from | 690 В |
| Rated continuous current Iu | 630 А |
| Suitable for DIN-rail mounting | No |
| With minimum voltage protection | Yes |
| IP protection rating | IP20 |
