AGS16N-S3DH-6-222K AO "Dielectric Cable Systems"
SKU: AGS16N-S3DH-6-222K
ETIM: EC000228
439743 ₽
Price list (incl. VAT):
628204 ₽
Preorder

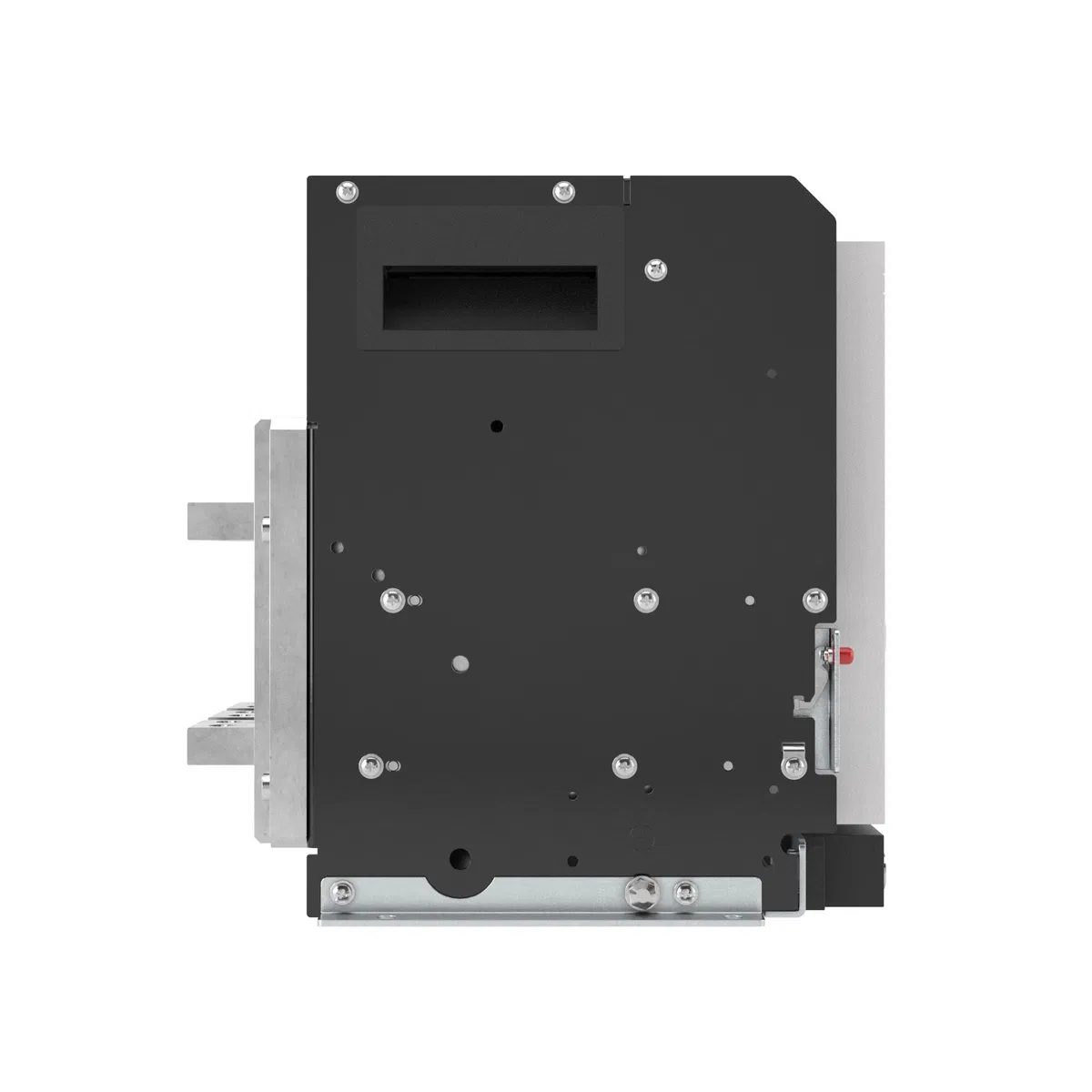

YON max AGS series air circuit breaker is designed for operation in low-voltage networks up to 415 V. Used for operating connections and disconnections, as well as for protection against overloads, short circuits, and ground faults. Rated current 1600 A, breaking capacity 65 kA, 3-pole, withdrawable type, trip unit 3H, control 220V AC
| Built-in ground fault protection | Yes |
| Overload protection device setting range to | 1600 А |
| Setting range of overload protection device from | 640 А |
| Instantaneous short-circuit release setting range to | 50000 А |
| Instantaneous short-circuit release setting range from | 1600 А |
| Trip indicator present | Yes |
| Number of auxiliary NO contacts | 6 |
| Number of auxiliary changeover contacts | 4 |
| Number of auxiliary break contacts | 6 |
| Number of poles | 3 |
| Design | Built-in withdrawable device |
| Motor drive optional | Yes |
| Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz | 65 кА |
| Rated voltage up to | 415 В |
| Rated voltage from | 380 В |
| Rated continuous current Iu | 1600 А |
| Suitable for DIN-rail mounting | No |
| With minimum voltage protection | No |
| IP protection rating | IP20 |
