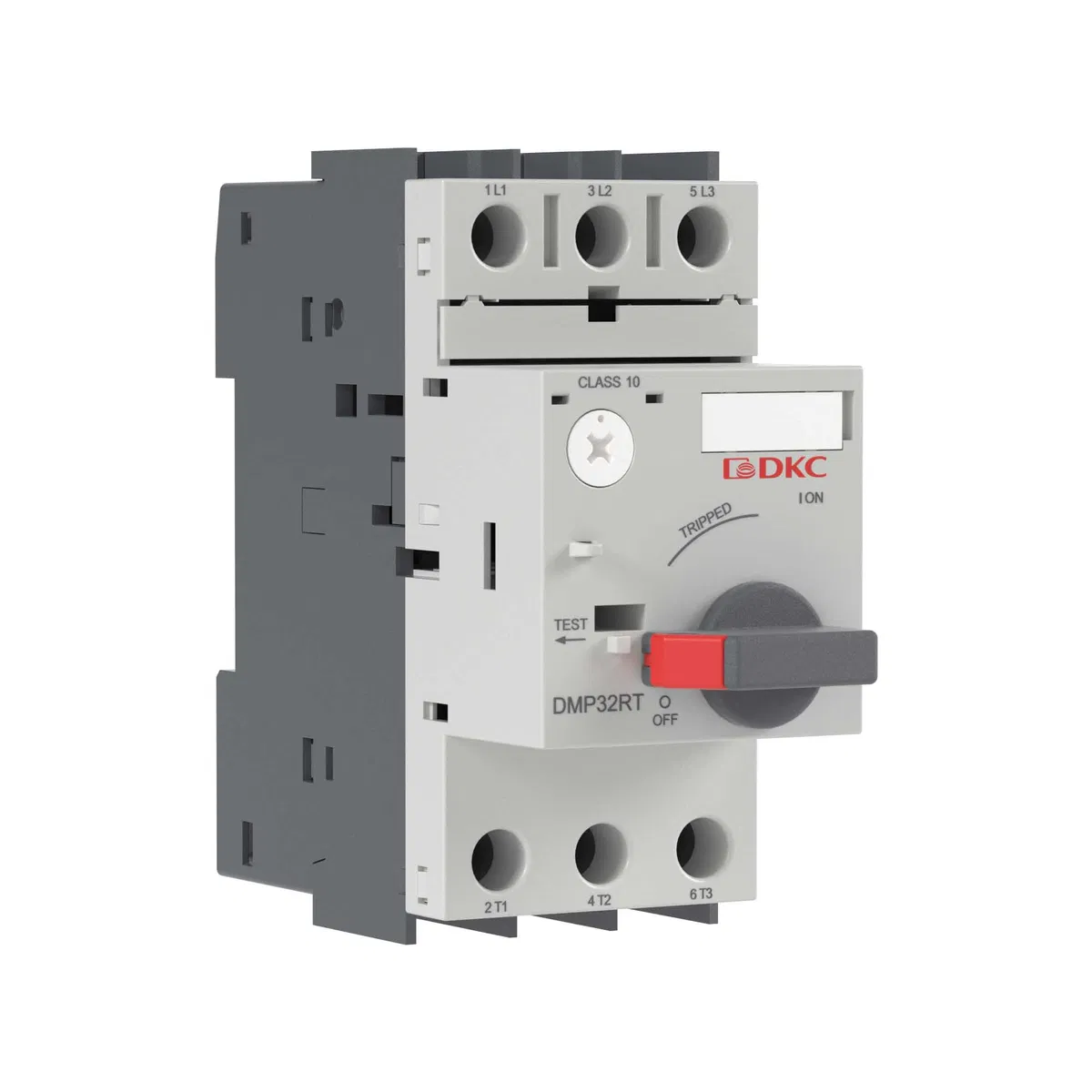

Motor protection circuit breaker YON DMP32RT with setting 4-6.3A 3P 100kA DMP32RT-6P30 DKC
SKU: DMP32RT-6P30
ETIM: EC000074
6,354 ₽
Get back 63 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
"YON" DMP32RT motor protection circuit breaker with adjustable setting 4-6.3 A 3P 100 kA with RT thermal-magnetic trip unit for protecting three-phase asynchronous motors against class 10 overload, phase failure modes, and short-circuit currents in accordance with selected settings. The devices feature a wide range of accessories, including an extended rotary handle for installation in MCC motor control centers.
Height
97.3 мм
Depth
96 мм
Overload protection device setting range to
6.3 А
Setting range of overload protection device from
4 А
Number of poles
3
Design
Complete unit in enclosure
Rated power in AC-3 mode, 230 V
1.1 кВт
Rated power at AC-3, 400 V
2.2 кВт
Rated ultimate breaking capacity Icu at 400V AC
100 кА
Rated voltage at
400 В
Rated voltage from
400 В
Rated continuous current Iu
4.9 А
With overheating protection
Yes
Tripping system
Thermomagnetic
With built-in auxiliary switch
No
With built-in undervoltage release
No
IP protection rating
IP20
Main electrical circuit connection type
Screw connection
Control element type
Rotary switch
Phase failure sensitive
Yes
Width
45 мм
