Systeme Electric

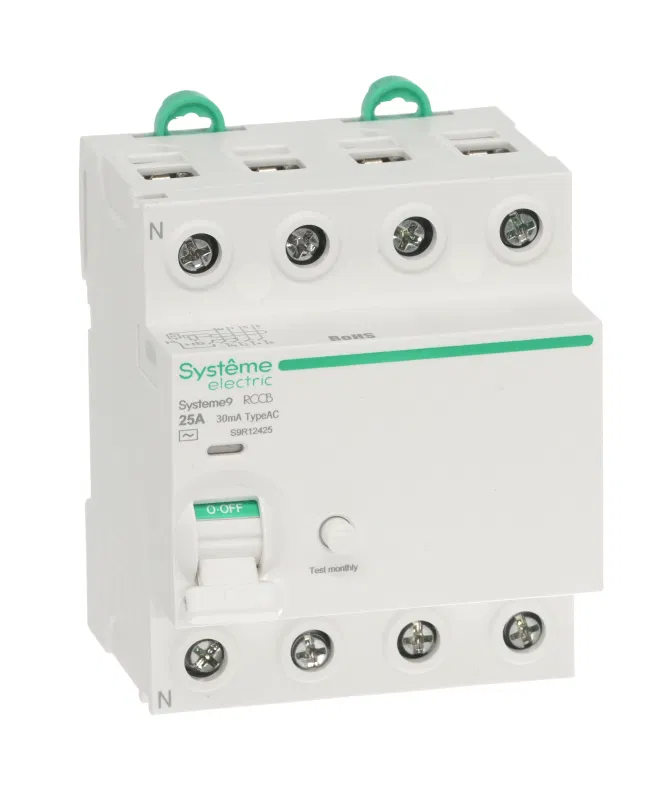

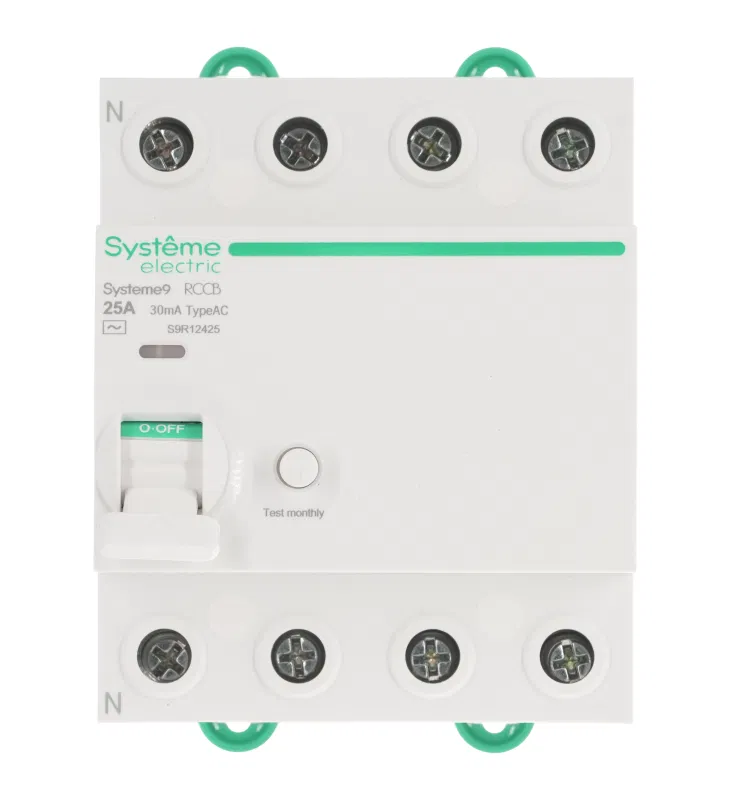

Residual current circuit breaker 4p 25A 30mA type AC Systeme9 400V SE S9R12425 Systeme Electric
SKU: S9R12425
ETIM: EC000003
7,613 ₽
Get back 76 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Additional equipment possible
Yes
Mounting installation depth
45 мм
Number of poles
4
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
6 кВ
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
25 А
Rated leakage current
30 мА
Ambient operating temperature to
60 град.C
Ambient operating temperature from
-5 град.C
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
25 кв.мм
Solid conductor cross-section to
35 кв.мм
Solid conductor cross-section from
35 кв.мм
Mounting method
DIN rail
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
Alternating current (AC)
Resistance to current surges
Please provide the text you would like me to translate. Currently, you have only provided ".25". кА
Frequency (Hz)
50/60 Hz
Width in modular units
4
