Systeme Electric

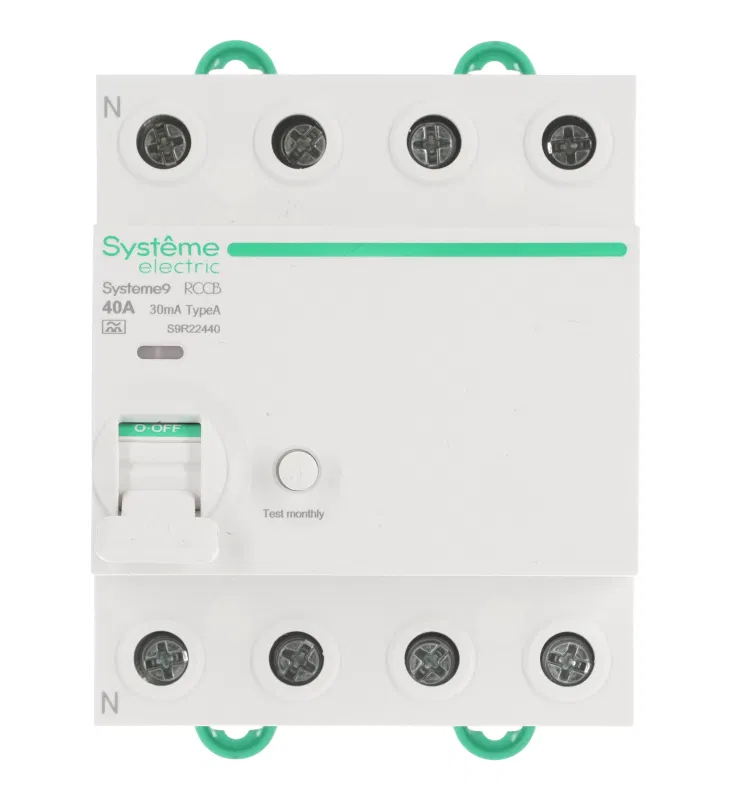

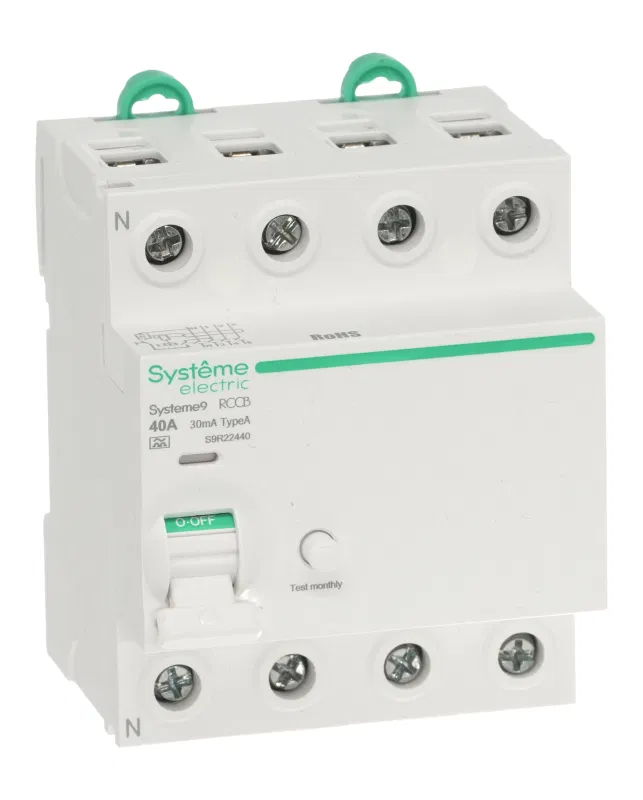

Residual current device 4p 40A 30mA type A RCD Systeme9 400V SE S9R22440 Systeme Electric
SKU: S9R22440
ETIM: EC000003
8,604 ₽
Get back 86 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Additional equipment possible
Yes
Mounting installation depth
45 мм
Number of poles
4
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
6 кВ
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
40 А
Rated leakage current
30 мА
Ambient operating temperature to
60 град.C
Ambient operating temperature from
-25 град.C
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
25 кв.мм
Solid conductor cross-section to
35 кв.мм
Solid conductor cross-section from
35 кв.мм
Mounting method
DIN rail
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
A
Resistance to current surges
.25 кА
Frequency (Hz)
50/60 Hz
Width in modular units
4
