EKF

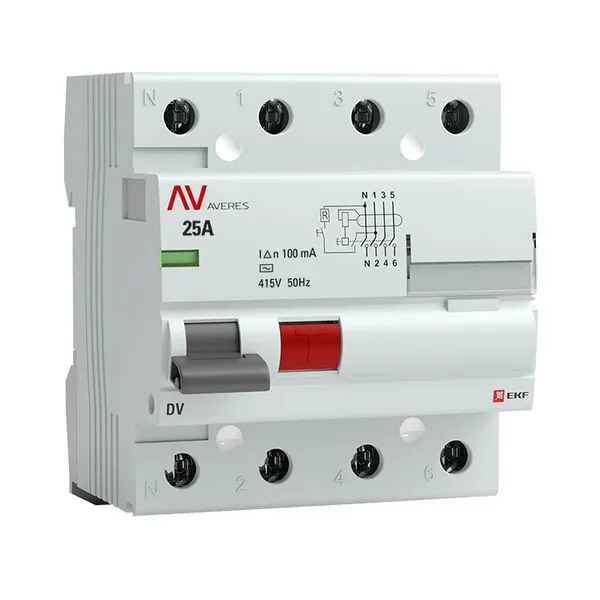

Residual current circuit breaker DV 4P 25A 100mA type AC electromechanical 10kA AVERES EKF rccb-4-25-100-ac-av
SKU: rccb-4-25-100-ac-av
ETIM: EC000003
4,958 ₽
Get back 49 ₽ in points
Analogues by specifications
Stock by warehouse
DV AVERES residual current devices (RCD) are designed to protect people from electric shock when touching exposed wiring or energized electrical equipment, and to prevent fires caused by prolonged leakage currents and resulting short-circuit currents. To protect against overload and short-circuit currents, residual current devices must be used in conjunction with circuit breakers. Warranty obligations are 10 years.
Additional equipment possible
Yes
Mounting installation depth
74 мм
Number of poles
4
Rated breaking capacity in accordance with EN 60898
10 кА
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
4 кВ
Rated voltage
400 В
Rated insulation voltage Ui
660 В
Rated current
25 А
Rated leakage current
0.1 мА
Ambient operating temperature to
50 град.C
Ambient operating temperature from
-25...50 град.C
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
1...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1...25 кв.мм
Mounting method
DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Residual current type
AC (alternating)
Resistance to current surges
10 кА
Frequency (Hz)
50/60 Hz
Width in modular units
4
