EKF

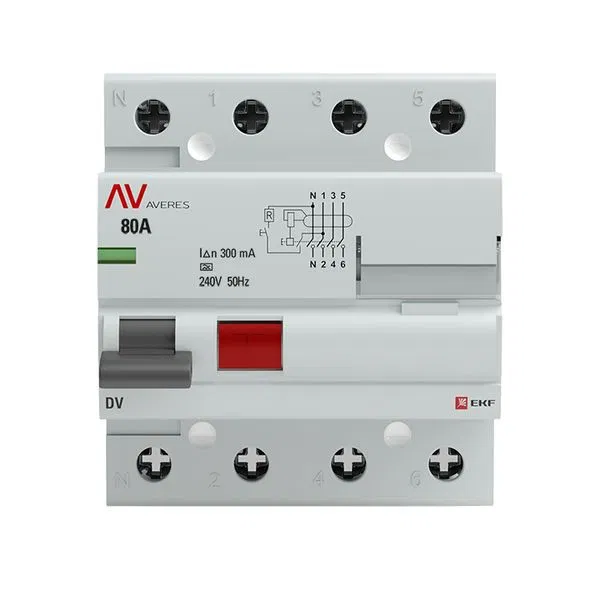

Residual current circuit breaker DV 4P 80A 300mA type A electromechanical 10kA AVERES EKF rccb-4-80-300-a-av
SKU: rccb-4-80-300-a-av
ETIM: EC000003
8,094 ₽
Get back 80 ₽ in points
Analogues by specifications
No description available
Additional equipment possible
Yes
Mounting installation depth
74 мм
Number of poles
4
Rated breaking capacity in accordance with EN 60898
10 кА
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
4 кВ
Rated voltage
400 В
Rated insulation voltage Ui
660 В
Rated current
80 А
Rated leakage current
0.3 мА
Ambient operating temperature to
50 град.C
Ambient operating temperature from
-25...50 град.C
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1...25 кв.мм
Solid conductor cross-section to
35 кв.мм
Solid conductor cross-section from
1...35 кв.мм
Mounting method
DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Residual current type
Please provide the text you would like me to translate.
Resistance to current surges
10 кА
Frequency (Hz)
50/60 Hz
Width in modular units
4
