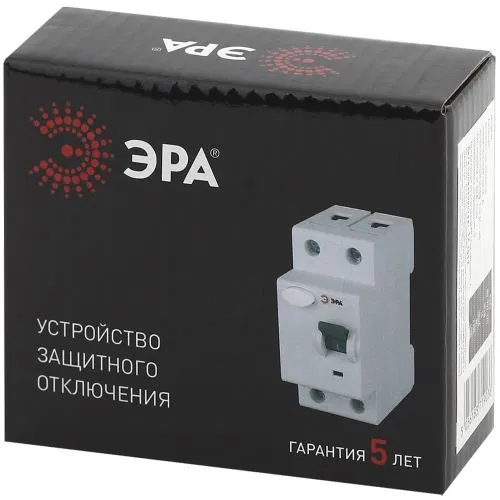

Residual Current Device (RCD) 1P+N 50A 30mA ВД1-63 Pro NO-902-41 ЭРА Б0031886
SKU: Б0031886
ETIM: EC000003
1,660 ₽
Get back 16 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
RCCB - a fast-acting protective switch that responds to differential current, without built-in overcurrent protection. Designed to protect persons from electric shock due to accidental unintentional contact with live parts of electrical installations and prevents fires caused by leakage currents to ground. It has no power consumption of its own and possesses high mechanical wear resistance. Over 50 types of versions for 10 rated currents.
Additional equipment possible
No
Mounting installation depth
66 мм
Number of poles
2
Rated breaking capacity in accordance with EN 60898
0 кА
Rated ultimate breaking capacity (Icw)
6 кА
Rated impulse voltage
0 кВ
Rated voltage
230 В
Rated insulation voltage Ui
230 В
Rated current
50 А
Rated leakage current
.03 мА
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-25 град.C
Leakage current adjustment
No
Adjustable delay time
No
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1 кв.мм
Mounting method
DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Installation size (in accordance with DIN 43880)
0
Residual current type
Alternating current (AC)
Resistance to current surges
.25 кА
Frequency (Hz)
50 Hz
Width in modular units
2
