DKC

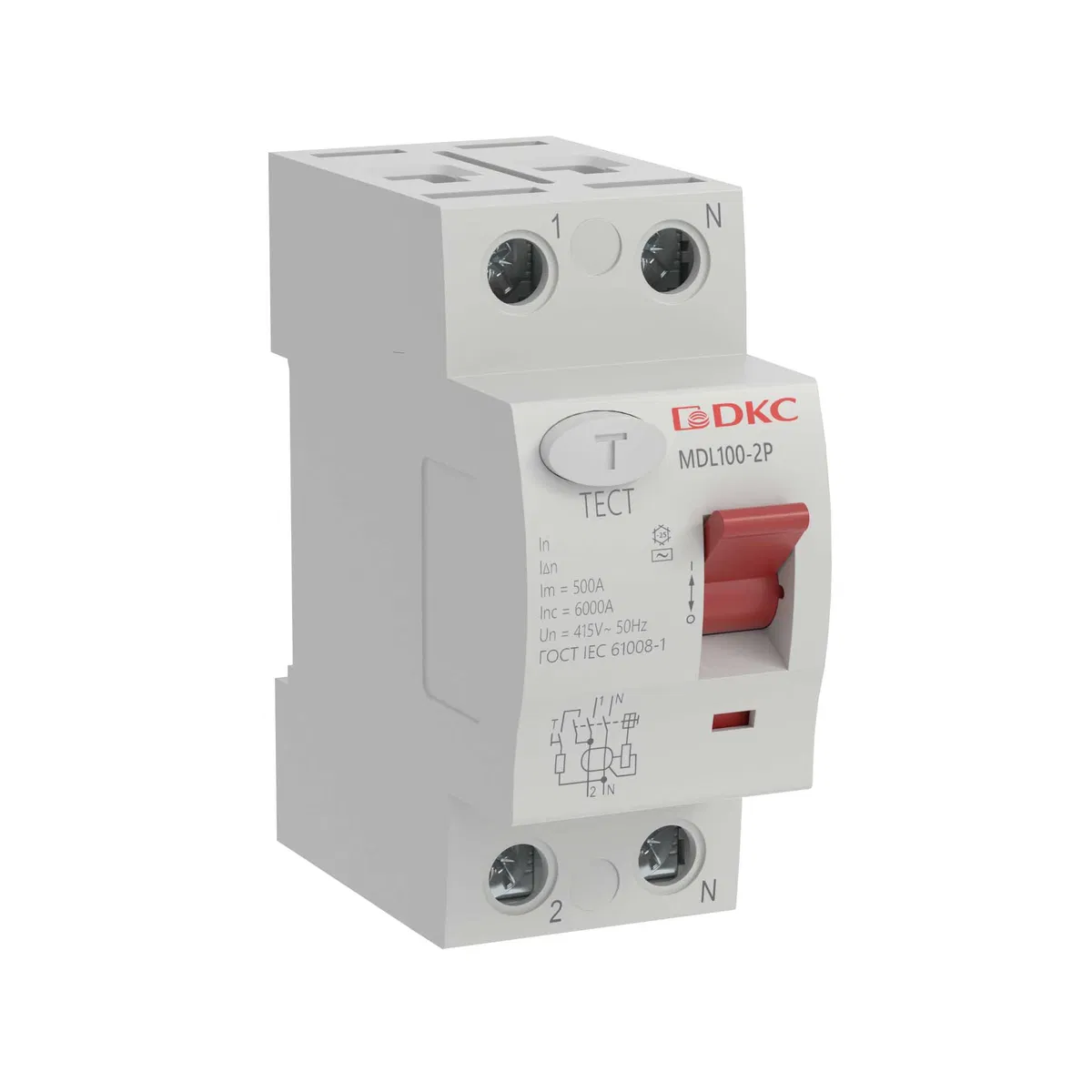

Residual Current Device YON max (YON max) type MDL100, 2 poles, 10mA, 16A, type AC MDL100-2P1-16-AC DKC
SKU: MDL100-2P1-16-AC
ETIM: EC000003
1,373 ₽
Get back 13 ₽ in points
Analogues by specifications
Stock by warehouse
YON max series Residual Current Device (RCD) with a rated current of 16 A, 2 poles, leakage current 10 mA, and breaking capacity 10 kA. Designed to protect people from electric shock and protect against fires caused by current leakage. Used in networks with a voltage of 230 V. Manufacturer's warranty: 5 years. "YON max" modular equipment is an ideal solution used in both the residential and industrial segments. A wide range (modular circuit breakers up to 10 kA, differential circuit breakers, residual current devices, surge protection devices, and modular contactors) allows for the implementation of electrical protection for any project.
Number of poles
2
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
4 кВ
Rated voltage
240 В
Rated current
16 А
Rated leakage current
10 мА
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-25 град.C
Selective protection
No
Mounting method
DIN rail
IP protection rating
IP20
Residual current type
Alternating current (AC)
Resistance to current surges
10 кА
Frequency (Hz)
50 Hz
Width in modular units
2
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
