DKC

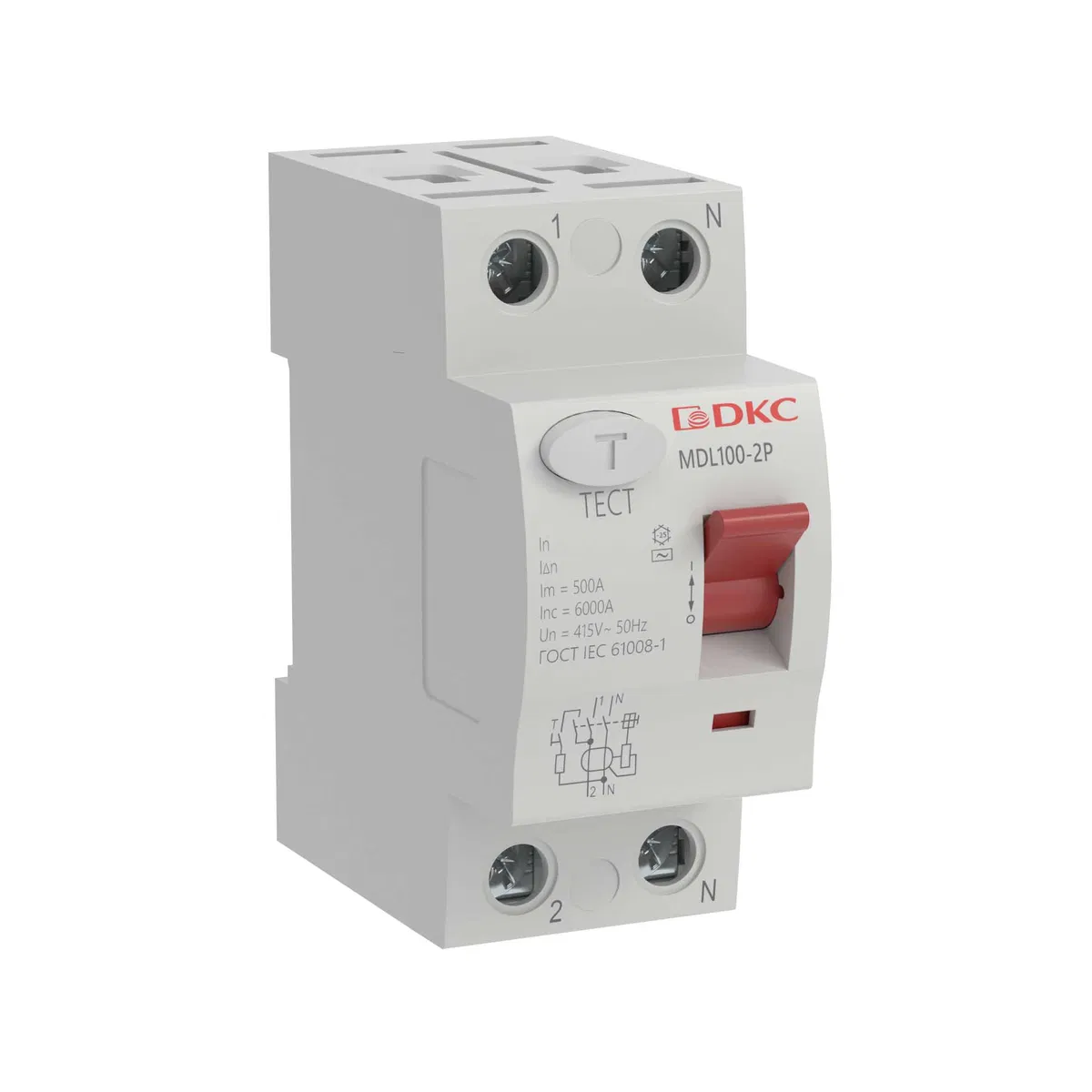

Residual current device (RCD) YON max type MDL100, 2 poles, 300mA, 25A, type AC MDL100-2P4-25-AC DKC
SKU: MDL100-2P4-25-AC
ETIM: EC000003
1,407 ₽
Get back 14 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
Residual Current Device (RCD) YON max series, rated current 25 A, 2 poles, leakage current 300 mA, breaking capacity 10 kA. Designed to protect against fires caused by current leakage. Used in 230 V networks. Manufacturer's warranty 5 years. YON max modular equipment is an ideal solution for both residential and industrial segments. A wide range (modular circuit breakers up to 10 kA, residual current circuit breakers, residual current devices, surge protective devices, and modular contactors) allows for electrical protection in any project.
Number of poles
2
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
4 кВ
Rated voltage
240 В
Rated current
25 А
Rated leakage current
300 мА
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-25 град.C
Selective protection
No
Mounting method
DIN rail
IP protection rating
IP20
Residual current type
Alternating current (AC)
Resistance to current surges
10 кА
Frequency (Hz)
50 Hz
Width in modular units
2
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
