TOKOV ELECTRIC

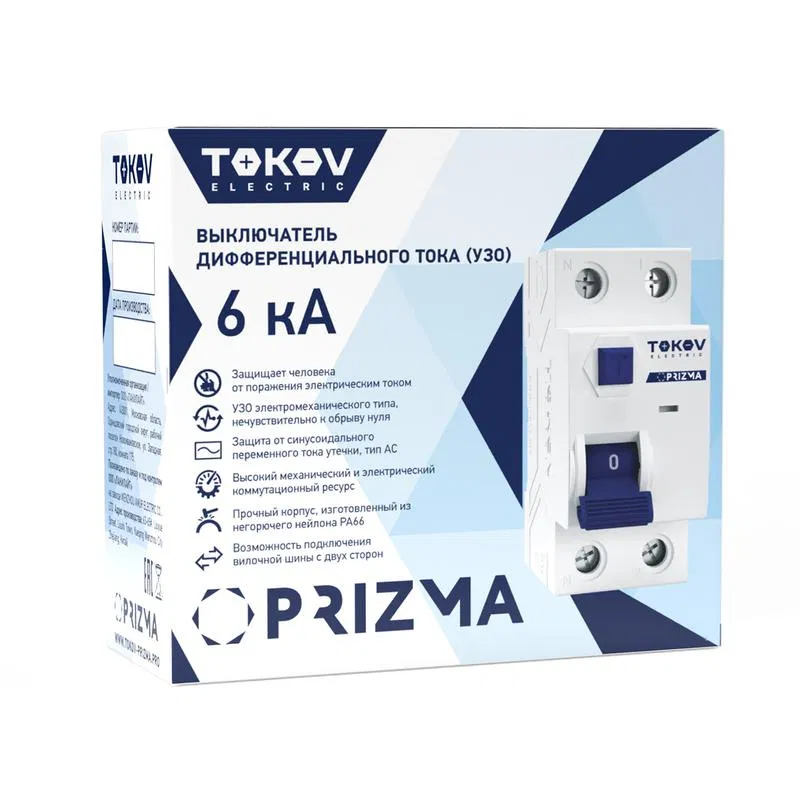

Residual Current Device (RCD) 2p (1P+N) 50A 30mA type AC 6kA PRIZMA TOKOV ELECTRIC TKE-PZ60-RCDM-2-50-30-AC
SKU: TKE-PZ60-RCDM-2-50-30-AC
ETIM: EC000003
1,467 ₽
Analogues by specifications
TOKOV ELECTRIC TKE-PZ60-RCDM-2-50-30-AC residual current device is designed to disconnect the circuit when leakage current occurs. The model is rated for a nominal current of 50 A and voltage of 230 V, has 2 poles and AC type leakage current. The rated residual current is 30 mA, breaking capacity is 6 kA, and protection degree is IP20. The RCD is installed on a DIN rail, occupies 2 modules, and operates at temperatures from -25 to +50 degrees. Warranty period is 5 years.
Additional equipment possible
No
Mounting installation depth
50 мм
Number of poles
2
Rated ultimate breaking capacity (Icw)
6 кА
Rated impulse voltage
6 кВ
Rated voltage
230 В
Rated insulation voltage Ui
400 В
Rated current
50 А
Rated leakage current
30 мА
Ambient operating temperature to
50 град.C
Ambient operating temperature from
-25 град.C
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
10 кв.мм
Stranded flexible conductor cross-section from
1 кв.мм
Solid conductor cross-section to
16 кв.мм
Solid conductor cross-section from
1 кв.мм
Mounting method
DIN rail
IP protection rating
IP20
Residual current type
Alternating current (AC)
Frequency (Hz)
50 Hz
Width in modular units
2
