Legrand

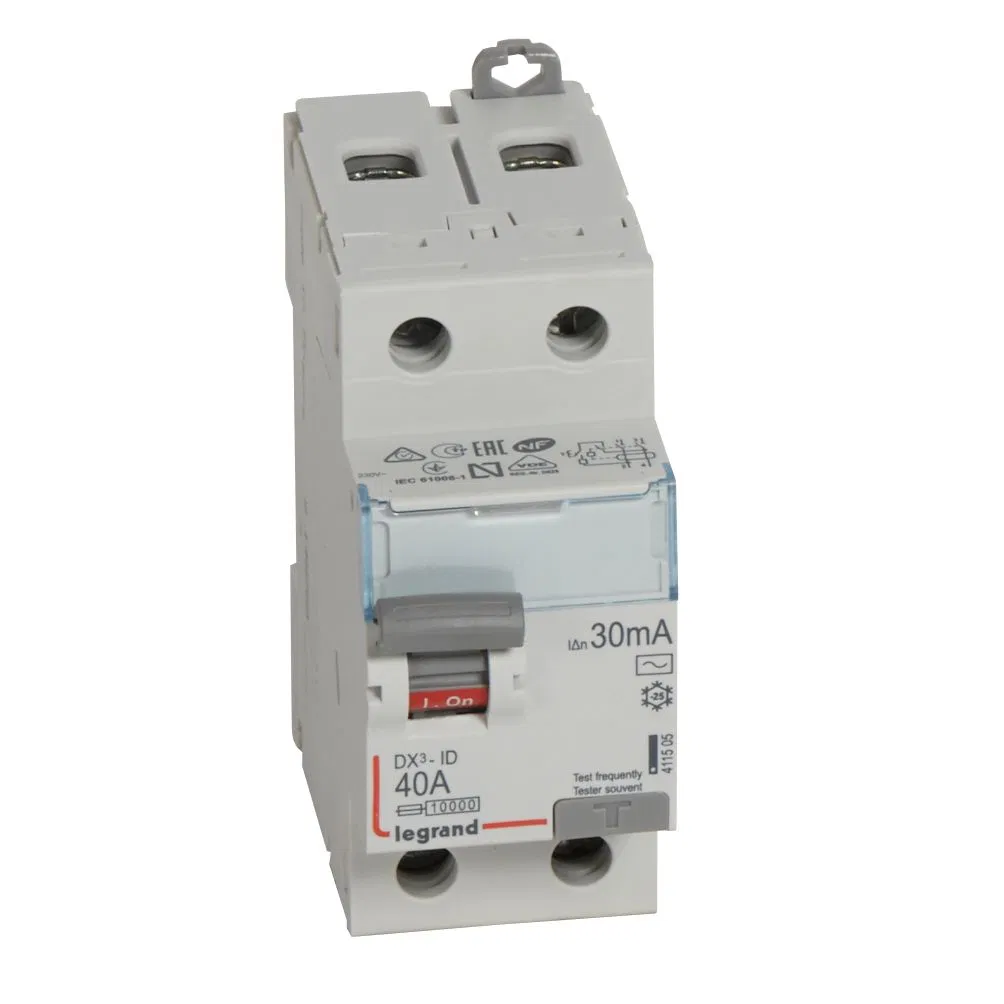

Residual Current Device (RCD) 2p 40A 30mA type AC DX3 IEK Leg 411505
SKU: 411505
ETIM: EC000003
70,096 ₽
Get back 700 ₽ in points
Order multiple: 24 шт
Analogues by specifications
No description available
Additional equipment possible
No
Mounting installation depth
60.9 мм
Number of poles
2
Maximum supply cable cross-section
16 кв.мм
Mech. endurance
20000
Rated impulse withstand voltage
4
Rated tripping residual current
30
Rated leakage current
0.03
Rated breaking capacity
6 кА
Rated breaking capacity in accordance with EN 60898
6 кА
Rated breaking capacity per IEC 60947-2
6 кА
Rated ultimate breaking capacity (Icw)
10 кА
Rated impulse voltage
4 кВ
Rated voltage
250 В
Rated insulation voltage Ui
250 В
Rated voltage from
230 В
Rated operating voltage
230
Rated current
40 А
Rated current
40 А
Rated leakage current
.03 мА
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-25 град.C
Leakage current adjustment
No
Adjustable delay time
No
Operating mode
Continuous-S1
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
35 кв.мм
Stranded flexible conductor cross-section from
10 кв.мм
Solid conductor cross-section to
50 кв.мм
Solid conductor cross-section from
16 кв.мм
Mounting method
DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Installation size (in accordance with DIN 43880)
1
Residual current type
Alternating current (AC)
Conditional rated residual short-circuit current
0.25
Resistance to current surges
4 кА
Frequency
50/60 Hz Гц
Frequency (Hz)
50 Hz
Width in modular units
2
Electrical endurance
10000
