EKF

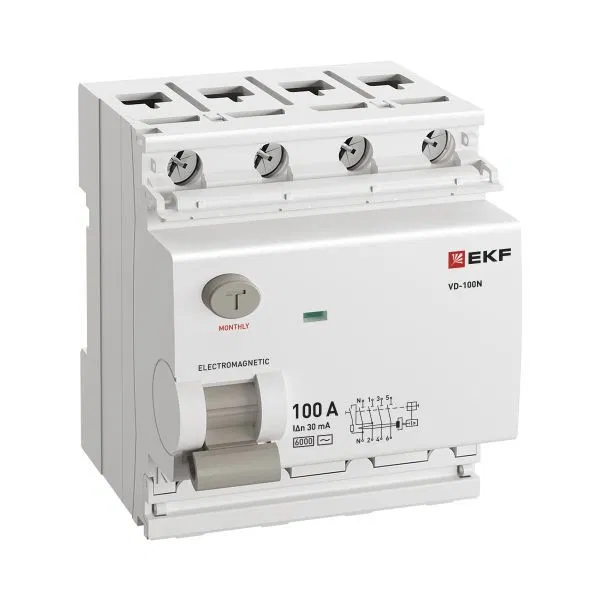

Residual Current Circuit Breaker VD-100N 4P 100A 30mA type AC electromechanical 6kA PROXIMA EKF E1046M10030
SKU: E1046M10030
ETIM: EC000003
2,319 ₽
Get back 23 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
RCD (Residual Current Device) VDT VD-100N PROXIMA EKF is used in AC electrical circuits with rated voltage 230V/400V and frequency 50 Hz. It is designed to protect people from electric shock upon accidental contact with exposed live parts of the electrical installation; to protect the electrical installation (EI) against insulation failure and malfunctions; to prevent fires and explosions caused by leakage currents and resulting short circuits, ground faults, and earth faults. RCD VDT VD-100N PROXIMA EKF complies with GOST 31601.2.1 (IEC 61008–2–1), IEC 61008–1.
Additional equipment possible
No
Mounting installation depth
72 мм
Number of poles
4
Rated impulse voltage
4 кВ
Rated voltage
400 В
Rated insulation voltage Ui
660 В
Rated current
100 А
Rated leakage current
0.03 мА
Ambient operating temperature to
55 град.C
Ambient operating temperature from
-40...55 град.C
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1...25 кв.мм
Solid conductor cross-section to
35 кв.мм
Solid conductor cross-section from
1...35 кв.мм
Mounting method
DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Residual current type
AC (alternating)
Resistance to current surges
6 кА
Frequency (Hz)
50 Hz
Width in modular units
4
