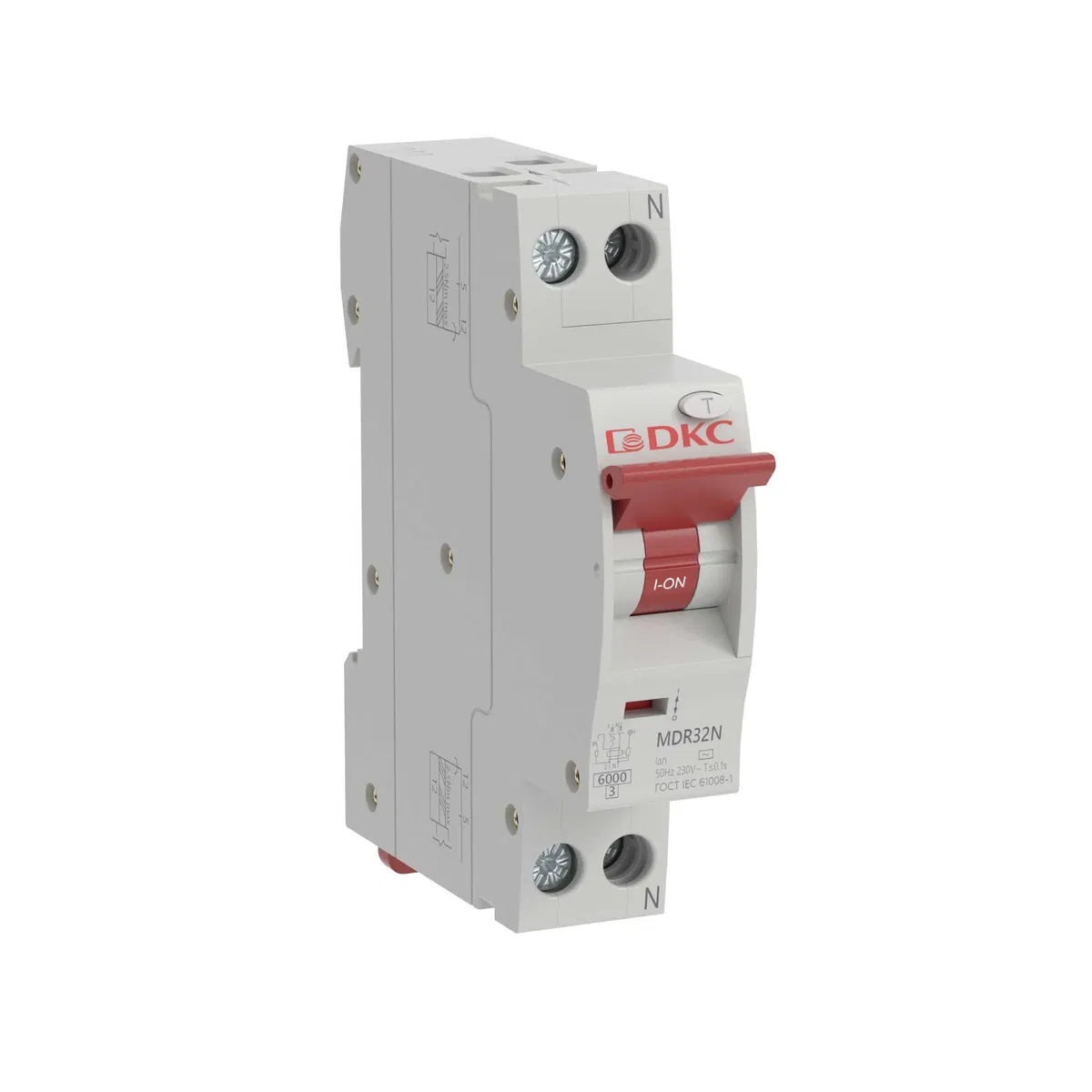

Compact RCBO YON max type MDR, 1P+N, 100mA, 25A, characteristic C, 6kA, type A MDR32N-1N3C25-A DKC
SKU: MDR32N-1N3C25-A
ETIM: EC000905
1,935 ₽
Get back 19 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Mounting installation depth
78.2 мм
Number of protected poles
1
Rated breaking capacity per IEC 60947-2
6 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
6 кА
Rated short-circuit breaking capacity per EN 61009
6 кА
Rated impulse voltage
4 кВ
Rated voltage
240 В
Rated insulation voltage Ui
690 В
Rated current
25 А
Rated leakage current
100 мА
Total number of poles
2
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-25 град.C
Current type
Alternating current (AC)
With switched neutral conductor
Yes
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
16 кв.мм
Solid conductor cross-section to
16 кв.мм
Solid conductor cross-section from
16 кв.мм
IP protection rating
IP20
Residual current type
A
Tripping characteristic
Without time delay
Tripping characteristic
C
Frequency (Hz)
50 Hz
Width in modular units
1
