Электротехник

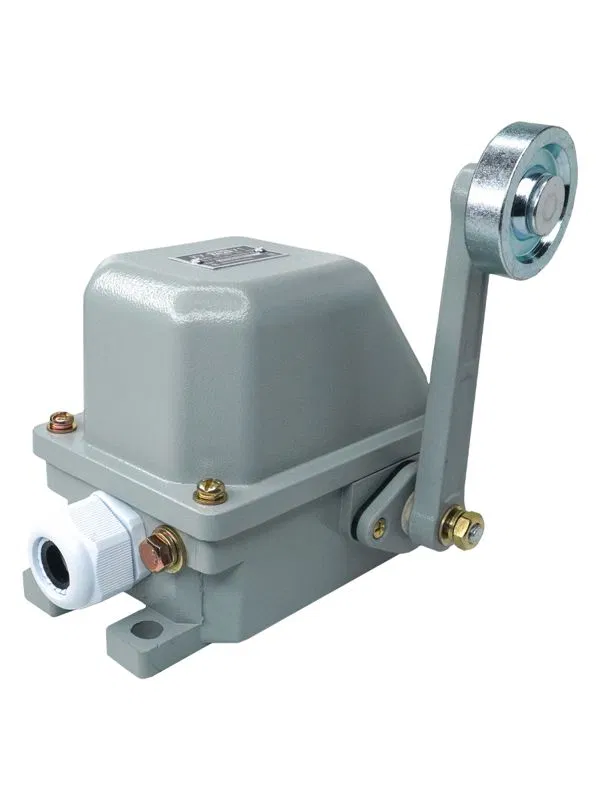

Limit switch KU-701 U1 10A IP54 2 electrical circuits lever with roller Elektrotekhnik ET503883
SKU: ET503883
ETIM: EC000030
3,827 ₽
Get back 38 ₽ in points
Analogues by specifications
Stock by warehouse
KU and NV series limit switches are designed for switching control circuits in AC crane drives with voltage up to 500 V, frequency 50/60 Hz, and DC voltage up to 440 V, and are installed in control circuits to limit the linear movement of mechanisms. The switches have two independent electrical circuits and can operate on both AC and DC in intermittent mode.
* Wide selection of actuator types;
* High degree of protection against moisture and dust;
* High switching and mechanical wear resistance;
* Silumin housing;
* Simple device installation;
* High wear resistance indicators.
Sensor height
137.5 мм
Sensor length
205 мм
Interface version
No (without)
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Number of normally closed (NC) contacts
2
Number of normally open (NO) contacts
2
Number of switching contacts
2
Housing material
Silumin (aluminium-silicon alloy)
Rated operational current Ie at AC-15, 230V
10 А
Suitable for security systems
Yes
Housing coating
Powder-coated
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-40 град.C
Manual control
No
With status indication
No
IP protection rating
IP54
Connection type
MG-type cable gland
Control element type
Roller lever
Sensor width
130 мм
