IEK

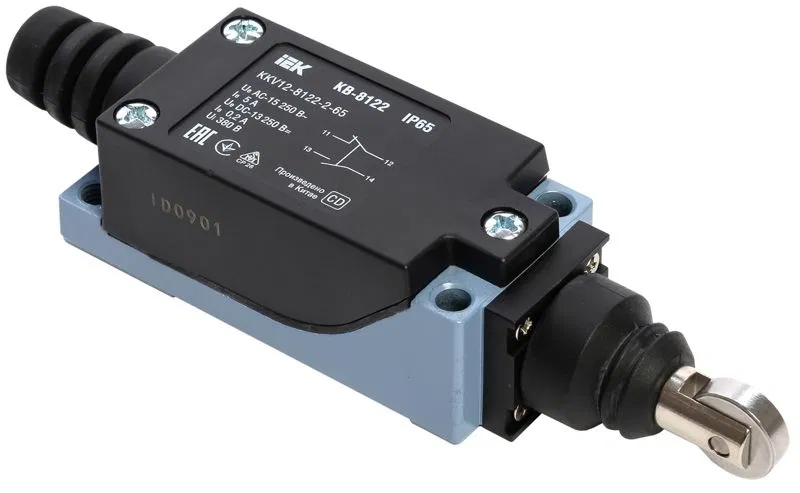

Limit switch KV-8122 vertical roller push IP65 IEK KKV12-8122-2-65
SKU: KKV12-8122-2-65
ETIM: EC000030
965 ₽
Get back 9 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
K V IEK limit switches are designed for switching electrical control, signaling, and monitoring circuits with voltages up to 250 V under the action of moving parts of the mechanisms.
Comply with the requirements of TR CU 004/2011 and GOST IEC 609475-1.
Without self-return (with latching)
No
Control element alignment
Other
Sensor height
24.9 мм
Sensor diameter
- мм
Differential travel
1 mm
Sensor length
78.7 мм
Permissible switching frequency per hour
1800
Number of normally closed (NC) contacts
1
Number of normally open (NO) contacts
1
Number of switching contacts
1
Housing complies with standards
Other
Housing material
Metal
Housing material
Metal
Mech. endurance
1000000
Rated switching current Ie at AC-15 250V
3
Rated switching current Ie A at DC-13 14V
4
Rated switching current Ie A at DC-13 30 V
4
Rated operational current Ie at AC-15, 125 V
3 А
Rated operational current Ie at AC-15, 230V
- А
Suitable for security systems
Yes
Total stem stroke
4
Direct stem stroke
1.5
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-20...70 град.C
IP protection rating
IP65
Connection type
Other
Control element type
Roller cam
Direct actuation force
9
Conventional thermal current Ith
10
Switching function
Momentary switch
Sensor width
28.6 мм
