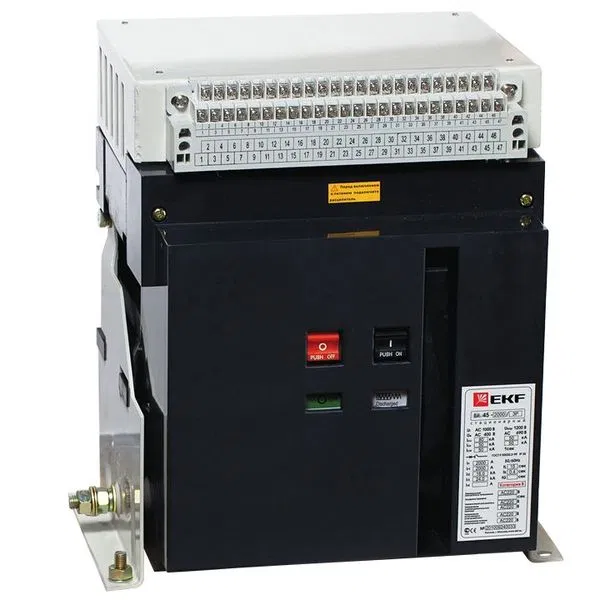

Load break switch 3p VN-45 3200/3200A stationary EKF nt45-3200-3200
SKU: nt45-3200-3200
ETIM: EC001105
595,319 ₽
Get back 5,953 ₽ in points
Analogues by specifications
BН-45 EKF series miniature circuit breakers are air circuit breakers with a free-trip mechanism and contact operation via a spring energy accumulator mechanism. The circuit breaker is designed as a mechanical structure mounted on a rigid frame. The main control and indication elements are located on the front panel.
Design
ON/OFF switch
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of poles
3
Complete device in housing
Yes
Housing material
Sheet steel/plastic
Housing material
Plastic
Rated power at AC-3, 400 V
2 217 кВт
Rated operating current Ie at AC-3, 400 V
3 200 А
Rated continuous current Iu
3 200 А
Suitable for front panel mounting
No
Suitable for base mounting
Yes
Suitable for intermediate mounting
No
Suitable for distribution board
Yes
With return to zero position
Yes
With zero position
No
Ingress protection (IP) of front side
IP30
Front protection rating (NEMA)
Other
Main electrical circuit connection type
Bolted connection
Control element type
Push button
