EKF
1-way switch SP Bronto 10A IP55 automatic terminals white EKF BT2-SWW-10
SKU: BT2-SWW-10
ETIM: EC001590
336 ₽
Get back 3 ₽ in points
Analogues by specifications
Stock by warehouse

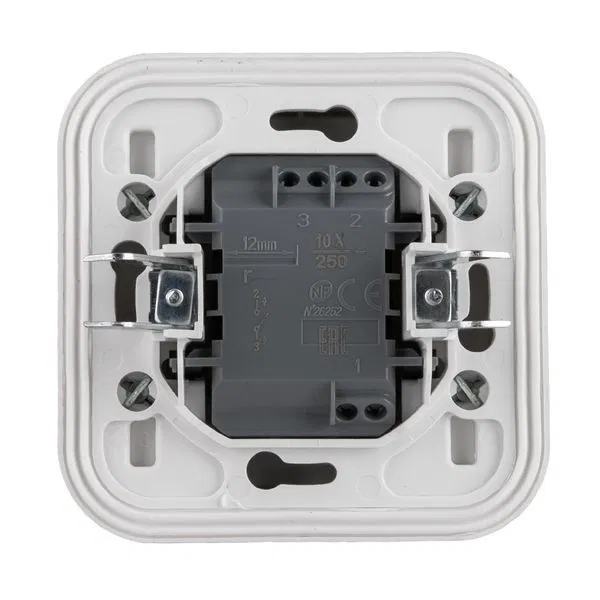

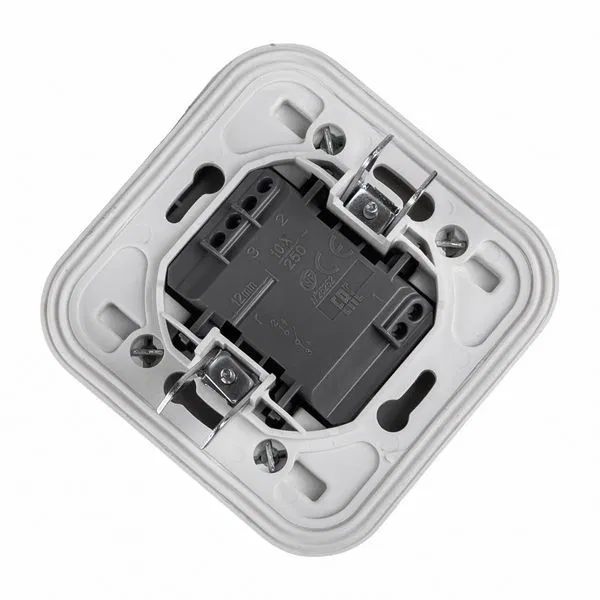

Single-gang switch EKF Bronto collection — a reliable solution for lighting control in harsh conditions. IP55 protection rating protects against dust and water, and the housing material is resistant to UV radiation and mechanical damage. Automatic terminals and airtight membrane entries ensure fast and reliable installation without extra effort — for both concealed and surface mounting.
Wireless local area network
No
Material type/grade
Thermoplastic
Spring-return push
No
Washing machine switch
No
Device height
80 мм
Mounting installation depth
45 мм
Device depth
53 мм
Protective surface coating
Untreated
Number of actuator buttons
1
Switched fluorescent lamp current
10 AX
Material
Plastic
Minimum depth of recessed mounting box
45 мм
Cable trunking installation
No
Halogen-free
Yes
Rated voltage
230 В
Rated current
10 А
Backlight
No
Suitable for ingress protection IP
IP55
With label field
No
Status signalling contact
No
Mounting method
Internal / concealed
Connection method
Screwless clamp/terminal
Switching/control type
Rocker/Button
Configuration type
Assembled with housing/frame
Fastening type
Snap-in
Surface type
Matte
Connection diagram type
1-pole switch
Color
White
Device width
80 мм
