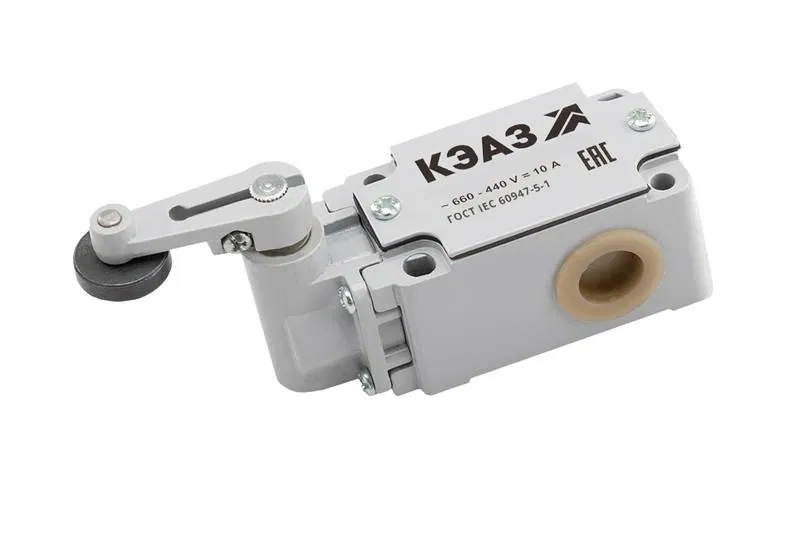

Travel limit switch VP 15K-21B-231-54 U2.8 IP54 lever with direct action roller Elektrotekhnik ET004427
SKU: ET004427
ETIM: EC000030
806 ₽
Price list (incl. VAT):
806 ₽
Available July 31
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Remote warehouse
Available
|
6 | шт | July 31 | July 31 |
Select a warehouse to order
VP 15 series selector switches are designed for use in electrical control, signaling, and monitoring circuits of the relative position of moving parts of the mechanism in space. Main application - switching of AC control circuits up to 660 V at 50 and 60 Hz and DC voltage up to 440 V under the influence of control stops at certain points of the controlled object's path.
* Wide range of drive types;
* High degree of protection against moisture and dust;
* High switching wear resistance;
* Impact-resistant silumin housing.
| Without self-return (with latching) | Yes |
| Interface version | No (without) |
| Gas explosion protection category (EU ATEX directives) | No (without) |
| Dust explosion protection category (EU ATEX Directive) | No (without) |
| Number of normally closed (NC) contacts | 2 |
| Number of normally open (NO) contacts | 2 |
| Number of switching contacts | 4 |
| Number of safety-related auxiliary contacts | 2 |
| Housing material | Silumin (aluminium-silicon alloy) |
| Suitable for security systems | Yes |
| Housing coating | Powder-coated |
| Ambient operating temperature to | 40 град.C |
| Ambient operating temperature from | -45 град.C |
| Manual control | Yes |
| With status indication | No |
| IP protection rating | IP54 |
| Product/component type | Limit switch |
| Connection type | PG cable gland |
| Control element type | Roller lever |
| Electronic output | Yes |
