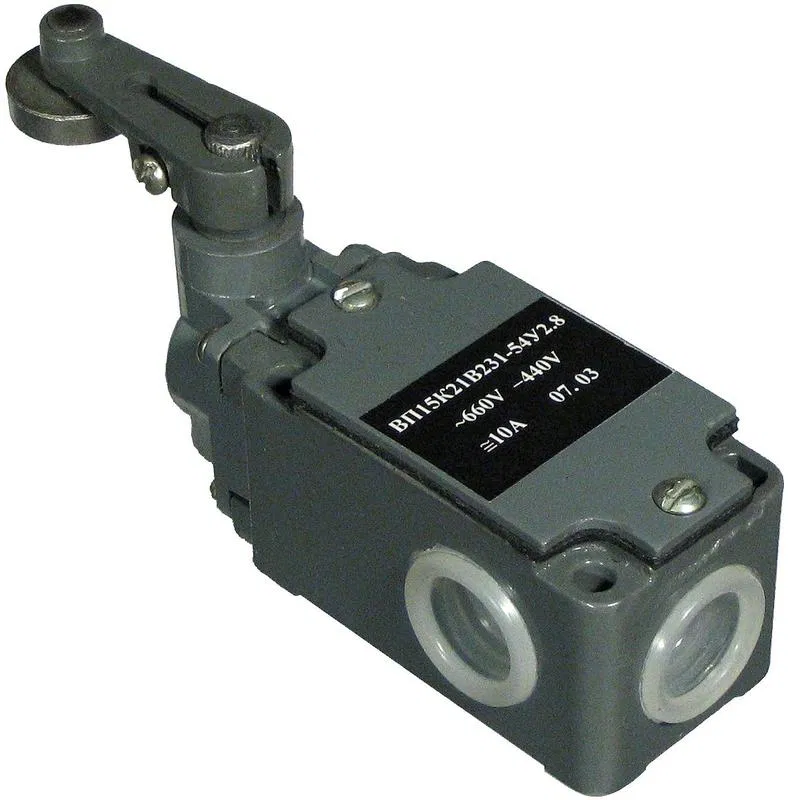

Cam switch VP-15K21B231-54U2.8 1NO+1NC 10A IP54 lever with roller direct action A8014-80086128 PEO other

SKU: A8014-80086128

ETIM: EC000030

1480 ₽

Preorder

Description Specifications Reviews

Without self-return (with latching)	No
Sensor height	44 мм
Sensor length	131 мм
Interface version	No (without)
Number of normally closed (NC) contacts	1
Number of normally open (NO) contacts	1
Number of switching contacts	0
Number of safety-related auxiliary contacts	0
Housing material	Silumin (aluminium-silicon alloy)
Rated operational current Ie at AC-15, 125 V	10 А
Rated operational current Ie at AC-15, 230V	10 А
Rated operational current Ie at AC-15, 24 V	10 А
Rated operating current Ie at DC-13, 125 V	10 А
Rated operating current Ie at DC-13, 230 V	10 А
Rated operating current Ie at DC-13, 24 V	10 А
Suitable for security systems	No
Housing coating	Powder-coated
Ambient operating temperature to	45 град.C
Ambient operating temperature from	-60 град.C
Manual control	No
With status indication	No
IP protection rating	IP54
Product/component type	Limit switch
Connection type	PG cable gland
Control element type	Roller lever
Sensor width	40 мм
Electronic output	No
