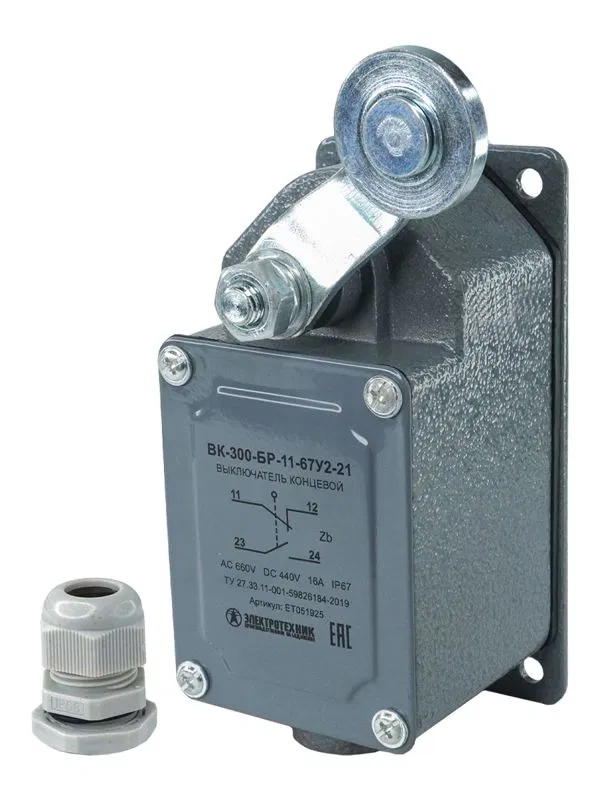

Switches are designed for switching AC electrical control circuits up to 660 V at 50 and 60 Hz and DC up to 440 V under the influence of control stops at specific points of the controlled object's path.
Without self-return (with latching)
No
Sensor height
46 мм
Sensor diameter
9 мм
Sensor length
103 мм
Interface version
No (without)
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Number of normally closed (NC) contacts
1
Number of normally open (NO) contacts
1
Number of switching contacts
0
Housing material
Metal
Rated operational current Ie at AC-15, 125 V
16 А
Rated operational current Ie at AC-15, 230V
11 А
Rated operational current Ie at AC-15, 24 V
25 А
Rated operating current Ie at DC-13, 125 V
.3 А
Rated operating current Ie at DC-13, 230 V
.12 А
Rated operating current Ie at DC-13, 24 V
.6 А
Suitable for security systems
Yes
Housing coating
Powder-coated
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-10 град.C
Manual control
No
IP protection rating
IP54
Connection type
Clamp/Screw mounting
Control element type
Pusher with roller
Sensor width
9 мм
Electronic output
No
