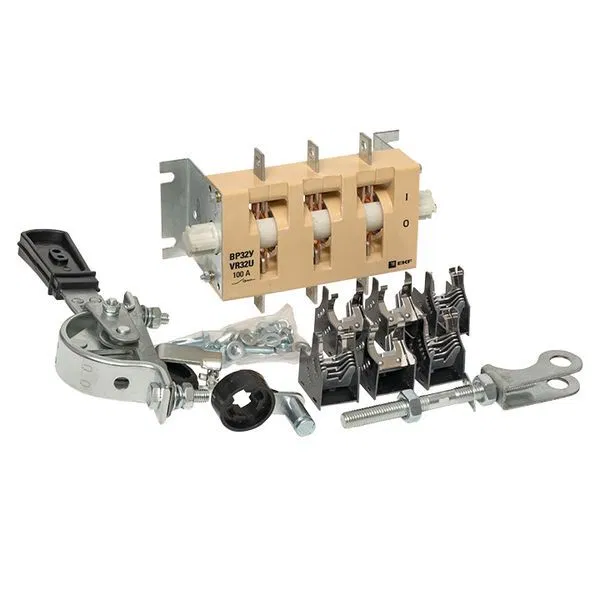

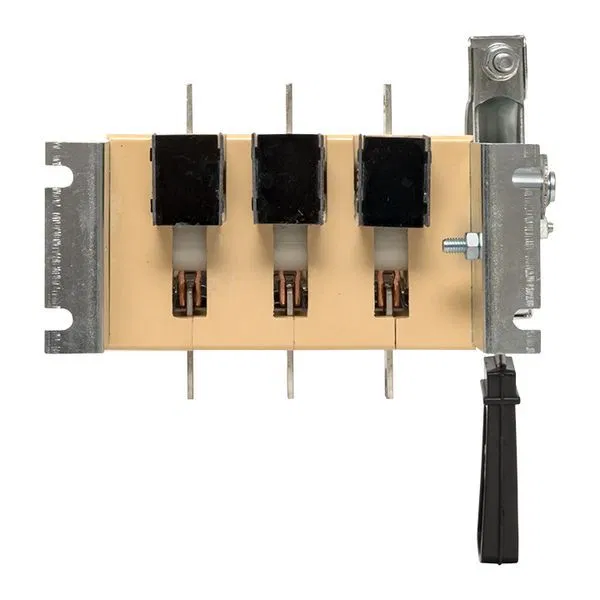

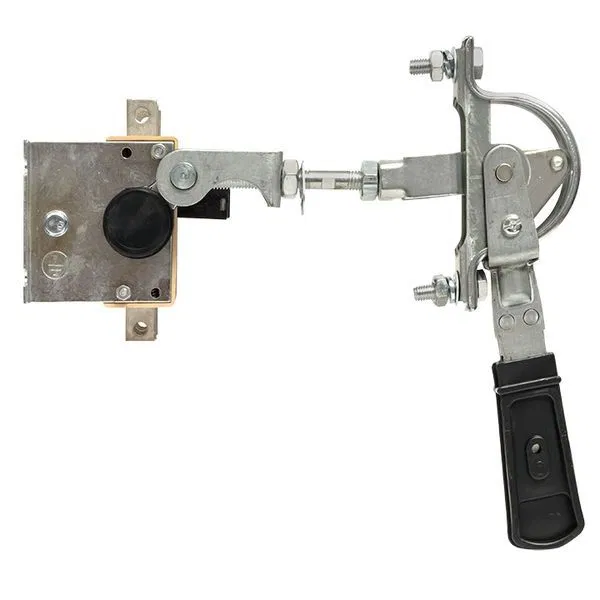

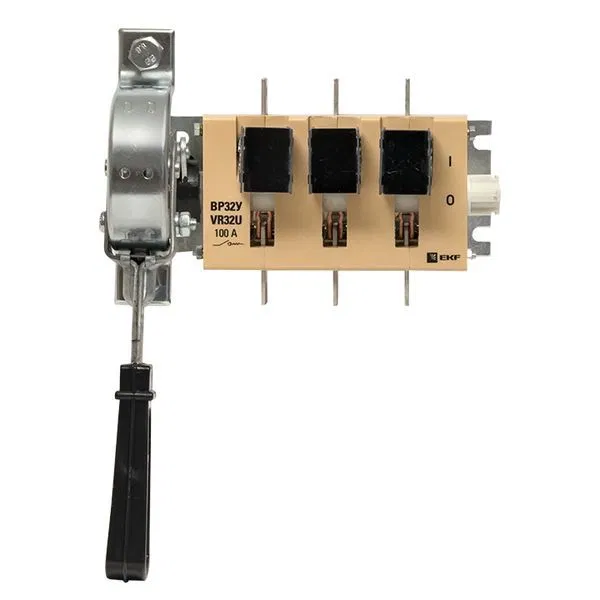

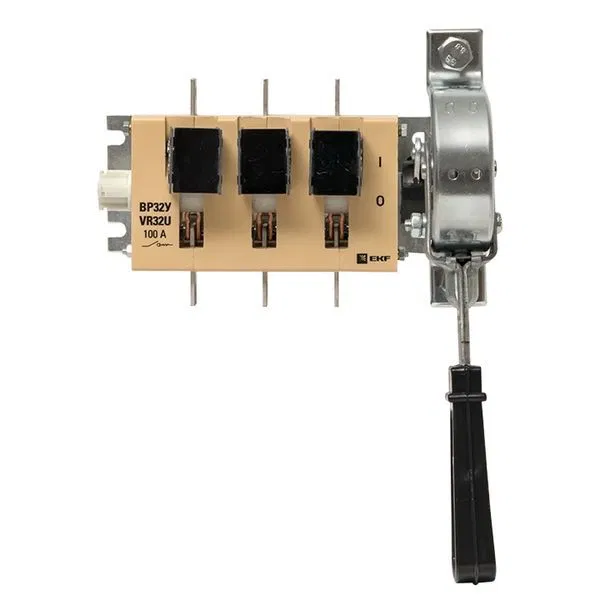

Switch-disconnector VR32U-31A31240-R 100A, 1 direction with arc chutes, with front offset handle EKF MAXima uvr32-31a31240-r
SKU: uvr32-31a31240-r
ETIM: EC000216
4,486 ₽
Get back 44 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
VR32U EKF MAXima (universal) disconnect switches are designed for manual switching of AC circuits with a rated voltage of up to 690V at a frequency of 50Hz. The design features a 3-pole knife-type contact system with double visible circuit separation. The double circuit separation, large contact gaps, and arc chutes ensure effective electric arc quenching during load switching, which prevents premature and excessive contact wear.
Built-in motor drive
No
Design as auxiliary/maintenance switch
Yes
Version as main switch
Yes
Design as protective switch
No
Version as emergency switching-off device
Yes
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of poles
3
Design
Mounting in distribution board
Maximum rated operational voltage Ue AC
690 В
Motor drive optional
No
Independent trip unit
No
Rated power in AC-23 operating mode, 400 V
80 кВт
Rated voltage at
690 В
Rated voltage from
400...690 В
Rated short-time withstand current Icw
5 кА
Rated continuous current Iu
100 А
Suitable for base mounting
No
Suitable for intermediate mounting
Yes
Suitable for distribution board
Yes
Reversing design
No
With interlock
No
Ingress protection (IP) of front side
IP00
Ingress protection (NEMA)
4
Product/component type
Load-break switch disconnector
Main electrical circuit connection type
Bolted connection
Control element type
Swivel lever
Conditional rated short-circuit current Iq
8 кА
Colour of control elements
Black
