Switch-disconnector VR32U-39A31220 630A 1 direction with arc chutes non-removable left/right handle MAXima EKF PROxima uvr32-39a31220
SKU: uvr32-39a31220
ETIM: EC000216
8,732 ₽
Get back 87 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
VR32U EKF MAXima (universal) disconnect switches are designed for manual switching of AC circuits with a rated voltage of up to 690V at a frequency of 50Hz. The design features a 3-pole knife-type contact system with double visible circuit separation. The double circuit separation, large contact gaps, and arc chutes ensure effective electric arc quenching during load switching, which prevents premature and excessive contact wear.
Built-in motor drive
No
Design as auxiliary/maintenance switch
Yes
Version as main switch
Yes
Design as protective switch
No
Version as emergency switching-off device
Yes
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of poles
3
Design
Mounting in distribution board
Maximum rated operational voltage Ue AC
690 В
Motor drive optional
No
Independent trip unit
No
Rated power in AC-23 operating mode, 400 V
315 кВт
Rated voltage at
690 В
Rated voltage from
400...690 В
Rated short-time withstand current Icw
16 кА
Rated continuous current Iu
630 А
Suitable for base mounting
No
Suitable for intermediate mounting
Yes
Suitable for distribution board
Yes
Reversing design
No
With interlock
No
Ingress protection (IP) of front side
IP00
Ingress protection (NEMA)
4
Product/component type
Load-break switch disconnector
Main electrical circuit connection type
Bolted connection
Control element type
Swivel lever
Conditional rated short-circuit current Iq
32 кА
Colour of control elements
Black
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
38833 ₽
КЭАЗ Switch VR32-39F A30221 630A UKHL3 KEAZ 110236
SKU: 110236
10340 ₽
CHINT Reversing switch NF2-63/HHRIM2 3P 63A with standard handle for DIN-rail or mounting board CHINT 324169
SKU: 324169
9234 ₽
КЭАЗ Disconnector PE19 31 31120 100A UHL3 KEAZ 119551
SKU: 119551
5353 ₽

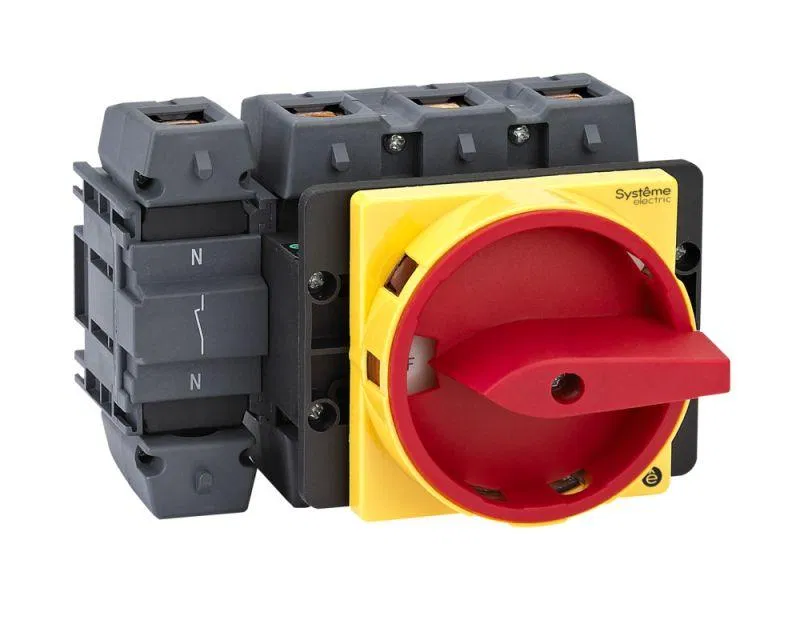

Systeme Electric Switch-disconnector 4p 32A IP20 with red handle on door with 4 screws and lock SE MSD32410R Systeme Electric
