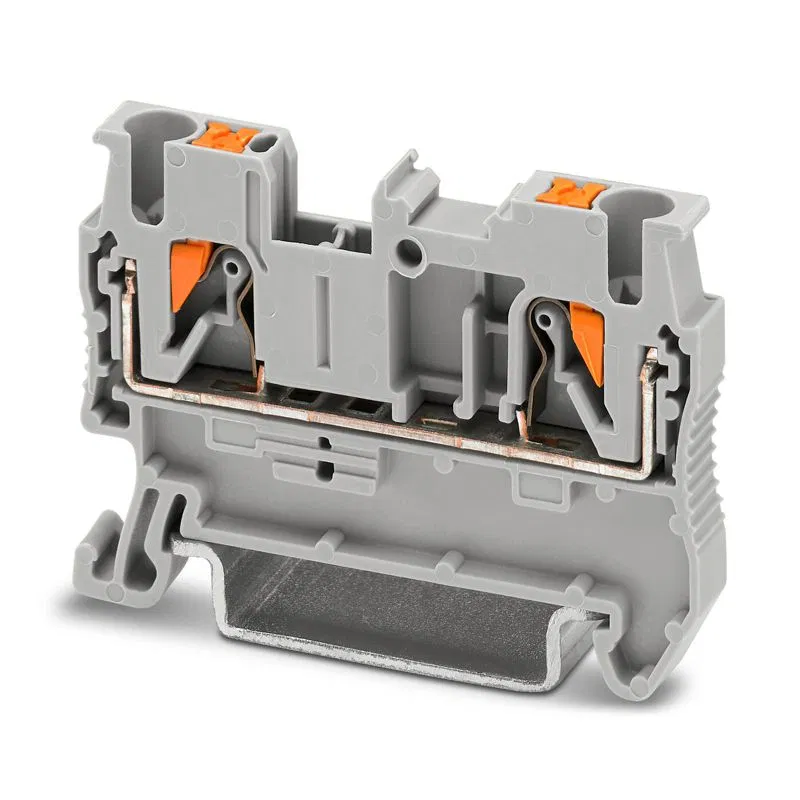

Screwless terminal clamp (ZNB) 2.5mm2 31A NO-222-33 grey (pack 50pcs) ERA B0033407
SKU: Б0033407
ETIM: EC000897
67,100 ₽
Get back 671 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 50 шт
Analogues by specifications
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
49.3 мм
Length
35.9 мм
Number of terminals per level
1
Number of poles
1
Number of levels
1
Number of bridged terminals
1
Housing insulation material
Polyamide (PA)
Rated voltage
800 В
Rated current In
31 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40 град.C
Module size
5.2 мм
Connection position
Top
Core cross-section
3.5 кв.мм
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
2.5 кв.мм
Solid conductor cross-section from
4 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Color
Grey
Width/connection pitch
5.2 мм
